Based on the self-developed high-performance refrigerated infrared detector, the PV series VOCs detection thermal imaging camera converts invisible gas into infrared images visible to the naked eye by leveraging infrared thermal imaging technology. It realizes effective monitoring of methane and other volatile organic compounds leakage during production, transportation, and handling in petrochemical and other enterprises, avoiding accidents such as dangerous gas emissions and ensuring safe production.
High-sensitivity cooled infrared detector, capable of detecting small gas leakage.
Effectively presenting trends in gas distribution and diffusion.
Effective leak detection of alkanes, alkenes, alcohols, benzenes, ketones, and other gases.
The intrinsically safe explosion-proof certification Ex icⅡC T6 Gc enables easy compliance with detection requirements within hazardous areas.

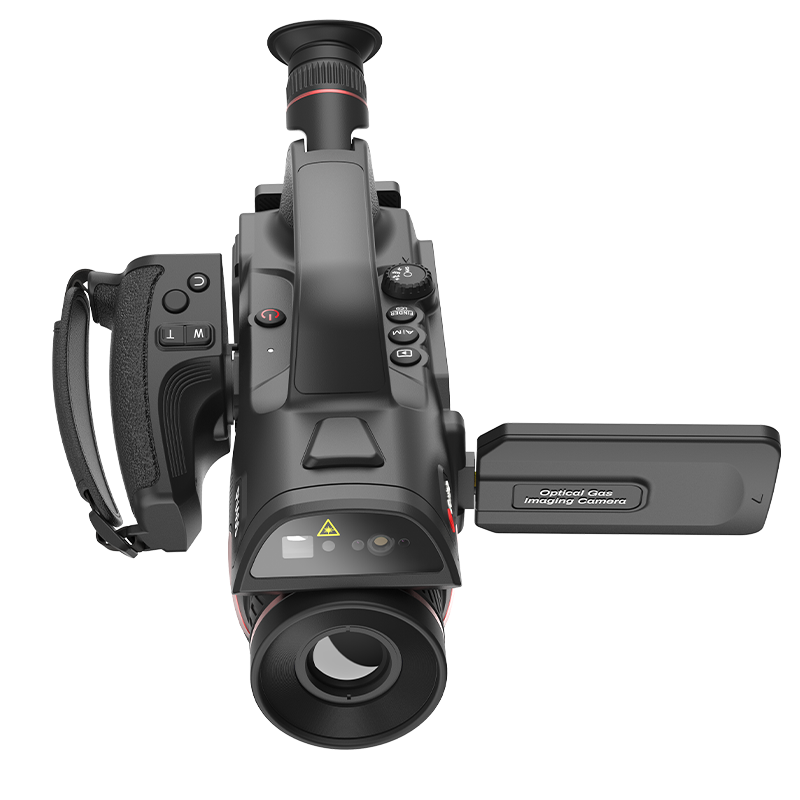

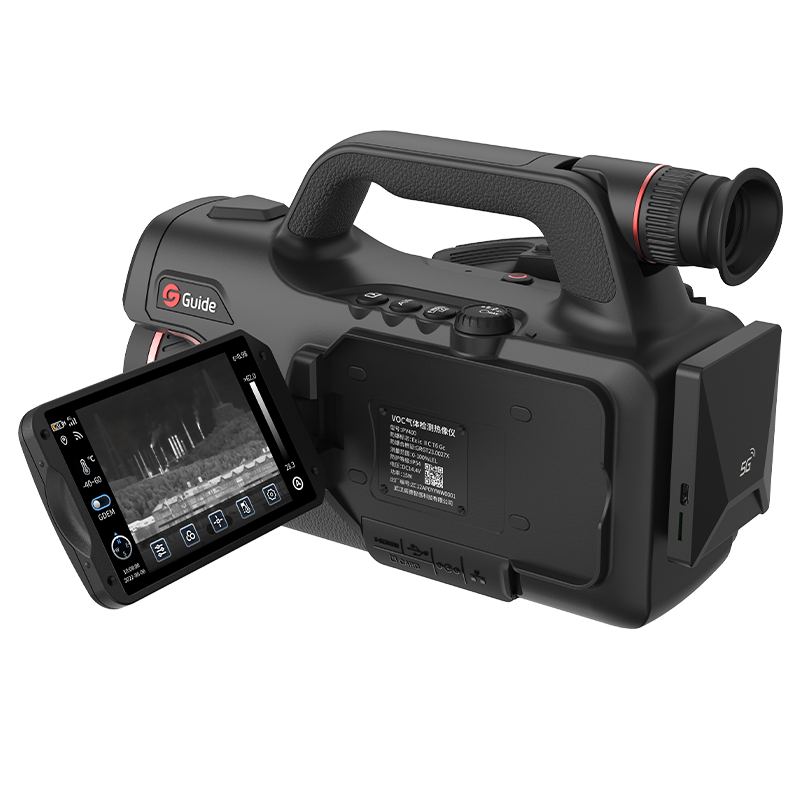

The remote non-contact temperature measurement function supports temperature analysis and high-temperature alarms, etc. Equipped with a rotatable OLED viewfinder and a flip-out LCD touchscreen, allowing operators to conveniently observe from multiple angles.
Effectively monitor various scenarios to prevent the emission of hazardous gases and safeguard life and property.
| Imaging and optics | |
| Detector type | Cooled, HgCdTe/MCT, 3.2μm~3.5μm |
| Infrared resolution | 320×256@30μm |
| Super resolution | Yes, Upgrade to 640×512 |
| NETD | 50mK |
| Frame rate | 50Hz |
| Focal length | 23mm |
| Field of view | 24°×18° |
| IFOV | 1.3mrad |
| Min. object distance | 1m |
| D:S | 769:1 |
| Focusing mode | Manual / Automatic |
| Digital zoom | 1x to 10x |
| Measurement and analysis | |
| Measurement range | IR mode: -40~350 °C; Gas mode: -40 °C~60 °C |
| Measurement accuracy | ±2°C or ±2%, whichever is greater |
| Analyzed target | Supports adding up to 15 analyzed targets (including a maximum of 15 spots, 2 lines, 4 circles, and 4 rectangles) |
| Alarm | Full screen temperature threshold alarm (image, voice and flash) |
| Parameter settings | Emissivity, reflection temperature, target distance, humidity, atmospheric temperature, optical transmittance |
| Others | Isothermals |
| Image display | |
| Display screen | 4.3'', 800×480 pixel touchscreen LCD |
| Eyepiece | 1024×768 OLED screen |
| Image mode | IR, VIS, MIF, PIP, Gas mode (support GDEMode) |
| Color palettes | 12: White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, Tint, Black Hot, Blue Hot, Sepia |
| Image adjustment | Level span mode: Automatic, Semi-automatic, Manual |
| Digital camera | 8 MP |
| Functions | |
| Laser | Laser (Indication, Ranging 0.1m to 40m) Recording function Photo and Video (infrared & visible light) |
| Recording function | Photo and Video (infrared & visible light) |
| Cloud Services | Available |
| Gas detection | Gas types: methane, ethane, propane, butane, pentane, hexane, heptane, octane, ethylene, propylene, isoprene, methanol, ethanol, butanone, benzene, toluene, xylene, ethylbenzene, etc |
| Others | Customized physical button, OTA update |
| Storage and transmission | |
| Storage media | Built-in (64 GB) and external SD card (128 GB and up to 256 GB) |
| Image storage | JPG with temp info |
| Video storage | MP4 format (without temp info) can be used to record audio synchronously; Irgd (with temp info) |
| External interface | Type-C, DC (12V) , SD card slot, Micro HDMI, RJ45, UNC ¼"-20 (Tripod mounting) |
| WIFI | Yes, it can be connected to the mobile terminal for image and real-time video transmission |
| Cellular network | 5G module (optional) |
| Power system | |
| Battery type | Lithium-ion rechargeable battery |
| Operating time | 3 hours |
| Charging mode | The device can be charged through desktop charger after shutdown. |
| Charging time | 90% of full charge in 2.5 hours, revealed by the status screen |
| Environmental parameters | |
| Working temperature | -20°C to 50°C |
| IP rating | IP54 |
| Certification | CE, FCC, ROHS, UN38.3, MSDS |
| Physical parameters | |
| Hardware | Illuminator×2, Microphone, Speaker, Electronic Compass, GPS |
| Weight | 3.36kg (with battery) |
| Size | 297×167×204mm |
| Software kit | PC: ThermoTools; Mobile: Thermography (iOS/Android) |
| Standard | A device (with lens), Lens front and back cover, Lithium-ion battery (2 pcs), Desktop charger, Power adapter, Adapter plug (for China, US, UK, Australia and Europe), TYPE-C USB cable, Micro HDMI cable, Ethernet Cable, SD card (128 GB) , Wrist strap, Safety box, Quick Start Guide, Data download card, Certificate of approval, Factory certificate |
| Options | Lithium battery, Tripod, Carrying bag, 5G module |
