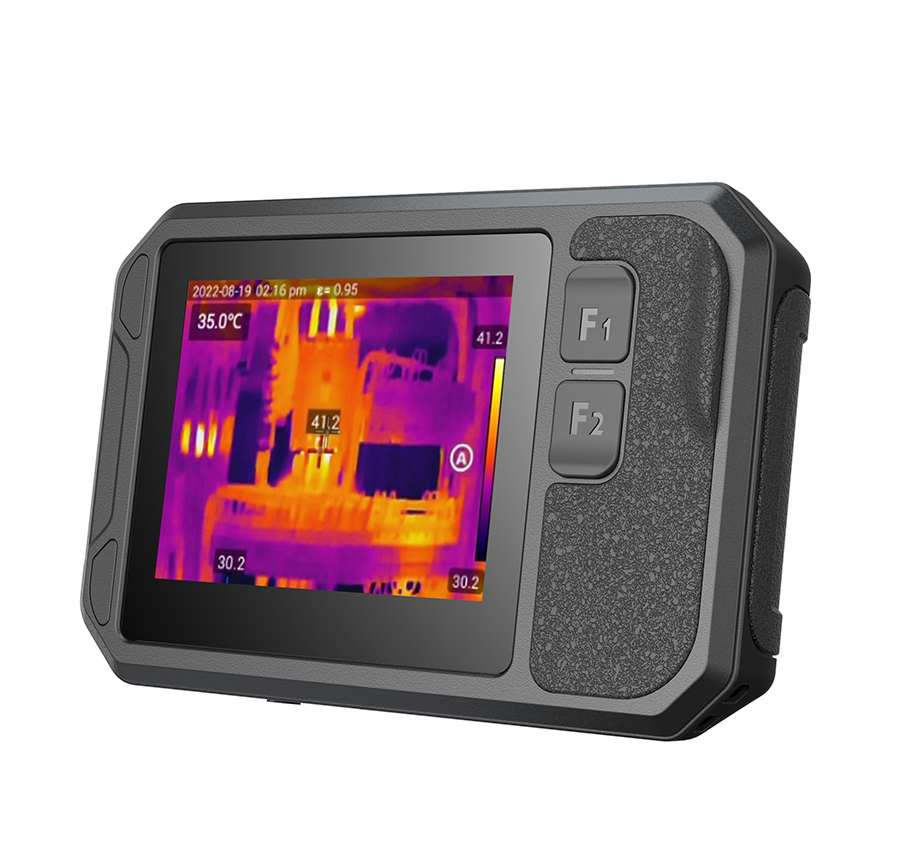

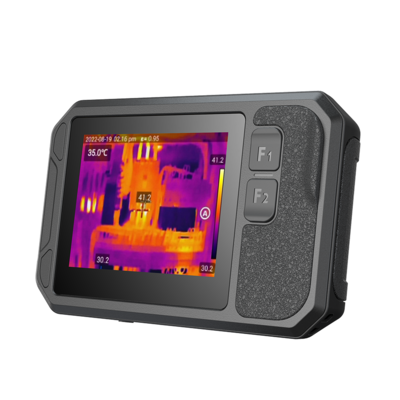

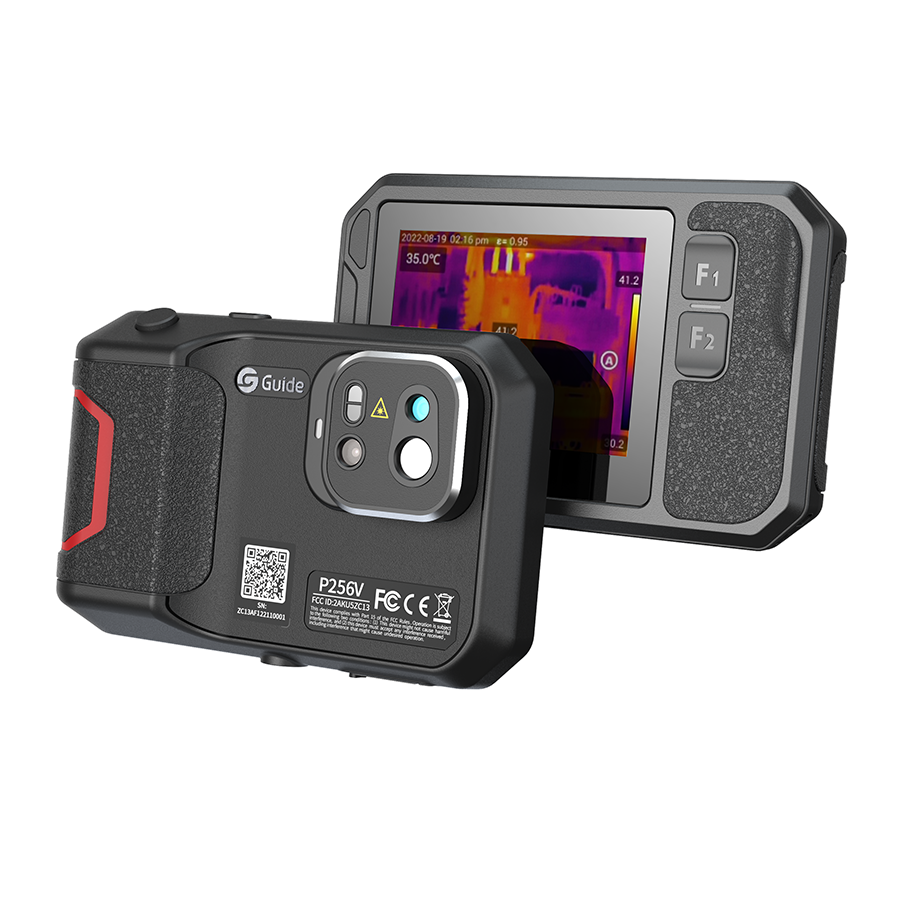

Pocket-sized Thermal Camera
The PF Series pocket-sized thermal camera is a non-contact inspection tool for diagnosing problems and finding hidden deficiencies of electrical equipment, thanks to its 256 × 192 pixel infrared detector, -20°C to 550°C temperature range, 5 MP visible light camera and 3.5-inch LCD touchscreen.
The extraordinary thermal imaging detail, easy operation and built-in Wi-Fi allow users to quickly and easily share the professional reports that document the problem.
Excellent thermal images
The in-house developed WLP infrared module with 256x192 resolution and the new noise reduction algorithm ensure that the PF series produces sharper, easier-to-identify images.
Real-time temperature information
Get accurate maximum, minimum and medium temperature readings on a full screen in four modes.
Simple and quick search
Enter a keyword, find the function setting effortlessly and quickly perform the function you need.
Custom function buttons
Two physical buttons eliminate the need to search for the most frequently used functions, allowing you to switch to the desired function at the touch of a button.
Recording and viewing
When you've taken photos, you can revisit them by tapping the thumbnails in the top right corner, making it easy to find a hidden deficit.

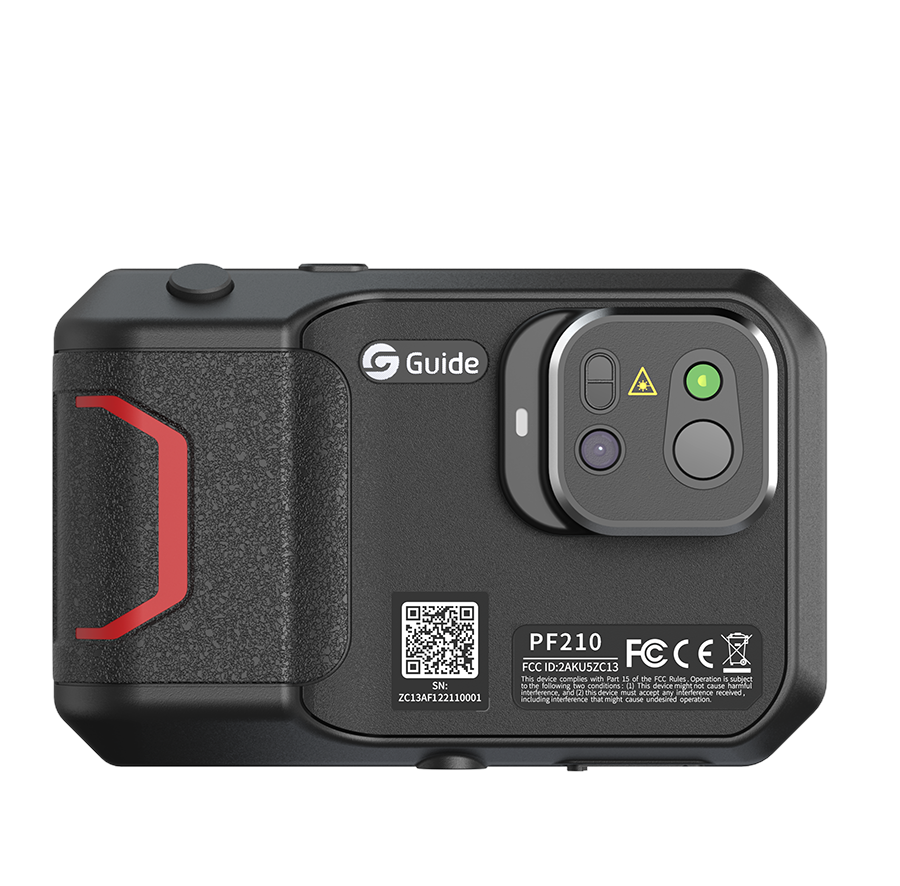

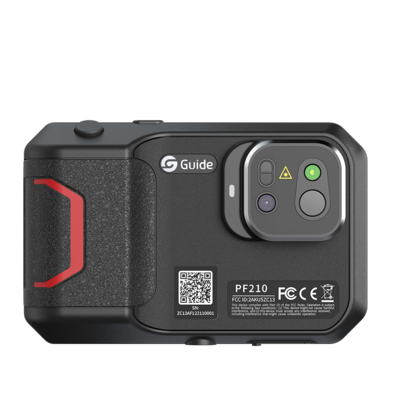

Ingebouwde lasers voor snelle temperatuurtracering
Laserindicator
Voor een precieze locatie en nauwkeurige temperatuurmeting van doelen.
Laserafstandsmeter
Nauwkeurige afstand-tot-doel en intelligente oppervlakteberekening van een rechthoekig object.
Specifications.
Thermal resolution 256 x 192 Pixels
Thermal sensitivity 45mK (0.045°C) NETD
Accuracy ± 2°C or 2%
Optical camera Yes
Image mode Thermal, Camera, Fusion, Image in picture
Color palettes Rainbow, Ironbow, White hot, Black hot, Red hot
Measuring range -20°C to 550°C
Image frequency 25 Hz
Viewing Angle 56° x 48°
Fixed focus
Temperature alarm Yes
Heat spots Coldspot, Hotspot, Centerspot, Customspot
Power supply Built-in Li-Ion battery
Battery life 4 hours
Charging time 3 hours
Storage Yes, internal 16 GB memory
Storage type JPEG and measurement data
Protection IP54
Tripod connection Yes, 1/4”
Dimensions LxWxH 138 x 89 x 34 mm
Weight 296 Gram
Warranty 1 Year
