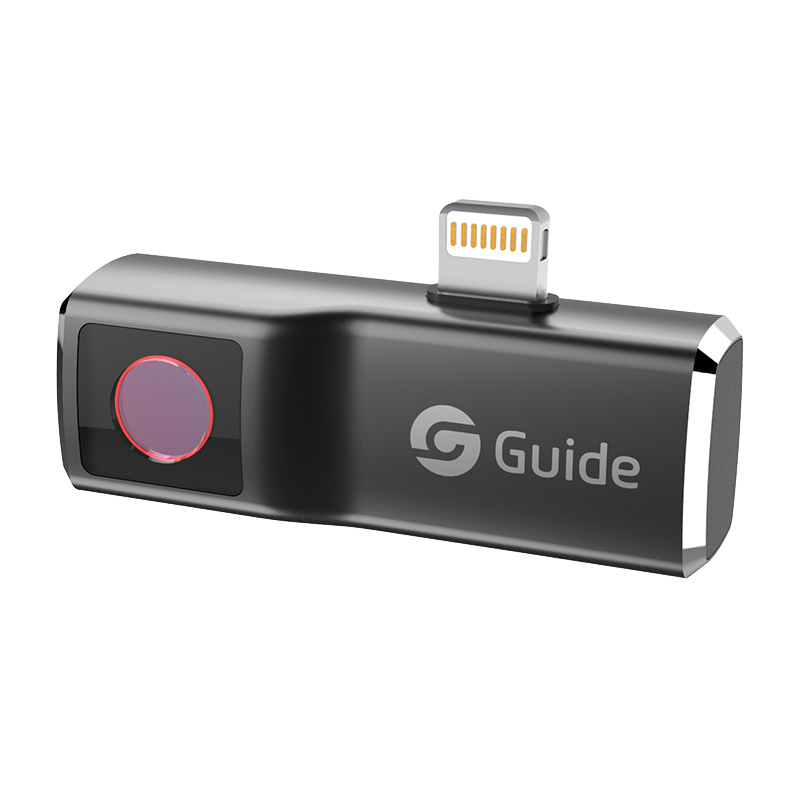

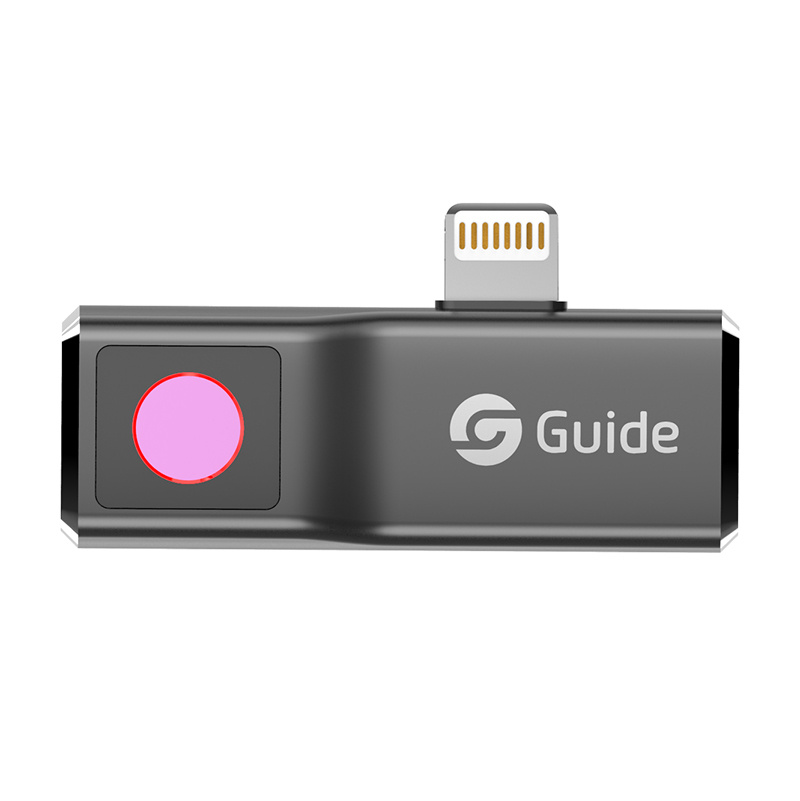

Thermal Camera for Smartphone
MobIR Air transforms the smartphone into a thermal camera. When connect it to a smartphone, the MobIR Air allows you to see the world which is invisible with your eyes. It can find and fix the HVAC issues quickly and accurately, detect building problems effectively and safely, test the electrical faults and it can be also used for patrol at night.
D.I.Y color palettes, makes your thermal images more interesting
•Color palettes can be customized for more colorful D.I.Y thermal pictures or videos.

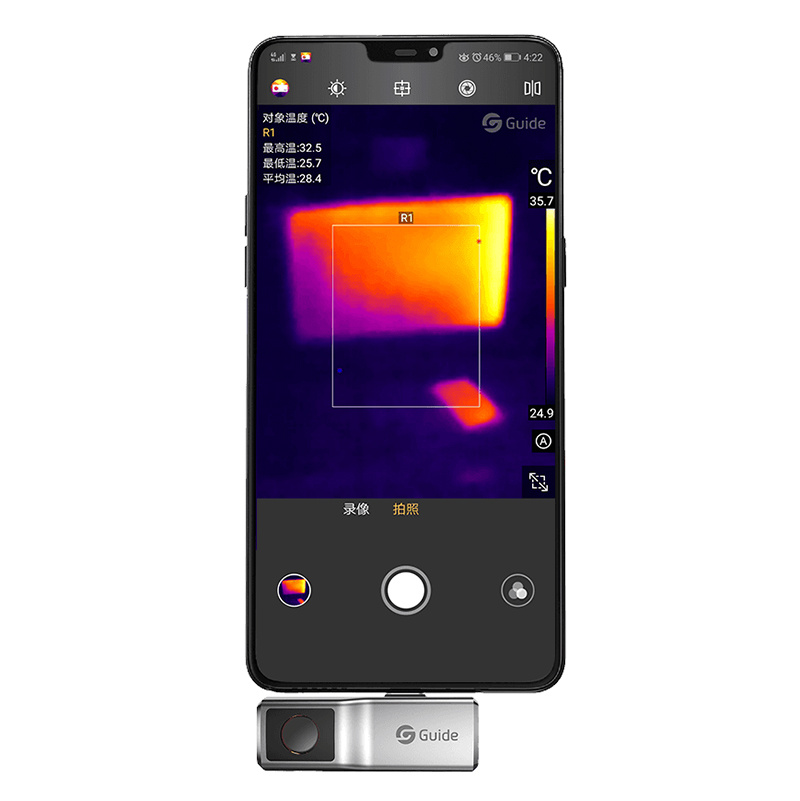

Easy, see the thermal imaging instantly
•Fully radiometric measurement
•Can distinguish the temperature difference above 0.06 °C
•Measuring from -20℃ to 120℃
Professional, the 1st entry-level tool for engineers
•Affordable price, powerful temperature analysis function like a professional thermal imager.
Specifications:
Infrared detector
Detector type VOx
Infrared resolution 120×90@17 μm
Wavelength range 7.5 to 14 μm
Frame rate 25 Hz
Lens
Focal length 2.3mm
Field of view 50°
Focusing mode Focus free
Temperature measurement
Measurement range -20°C to 120°C
Measurement accuracy ±5°C
Measurement Spot, line, area
APP Functions
Photo Available
Video Available
Color palettes 9 and 1 customized
Instant sharing Images, videos
Power system
Power supply iOS: 2.5V to 4.8V
Power consumption 150 mW
Environmental parameters
Working temperature 0°C to 40°C
IP rating IP43
Drop 1m drop test (without the interface)
Certification CE, FCC, RoHS
Physical parameters
External interface iOS: Lightning
Weight ≤20g
Size 50×14×18 mm
Color Silver/Grey/Gold

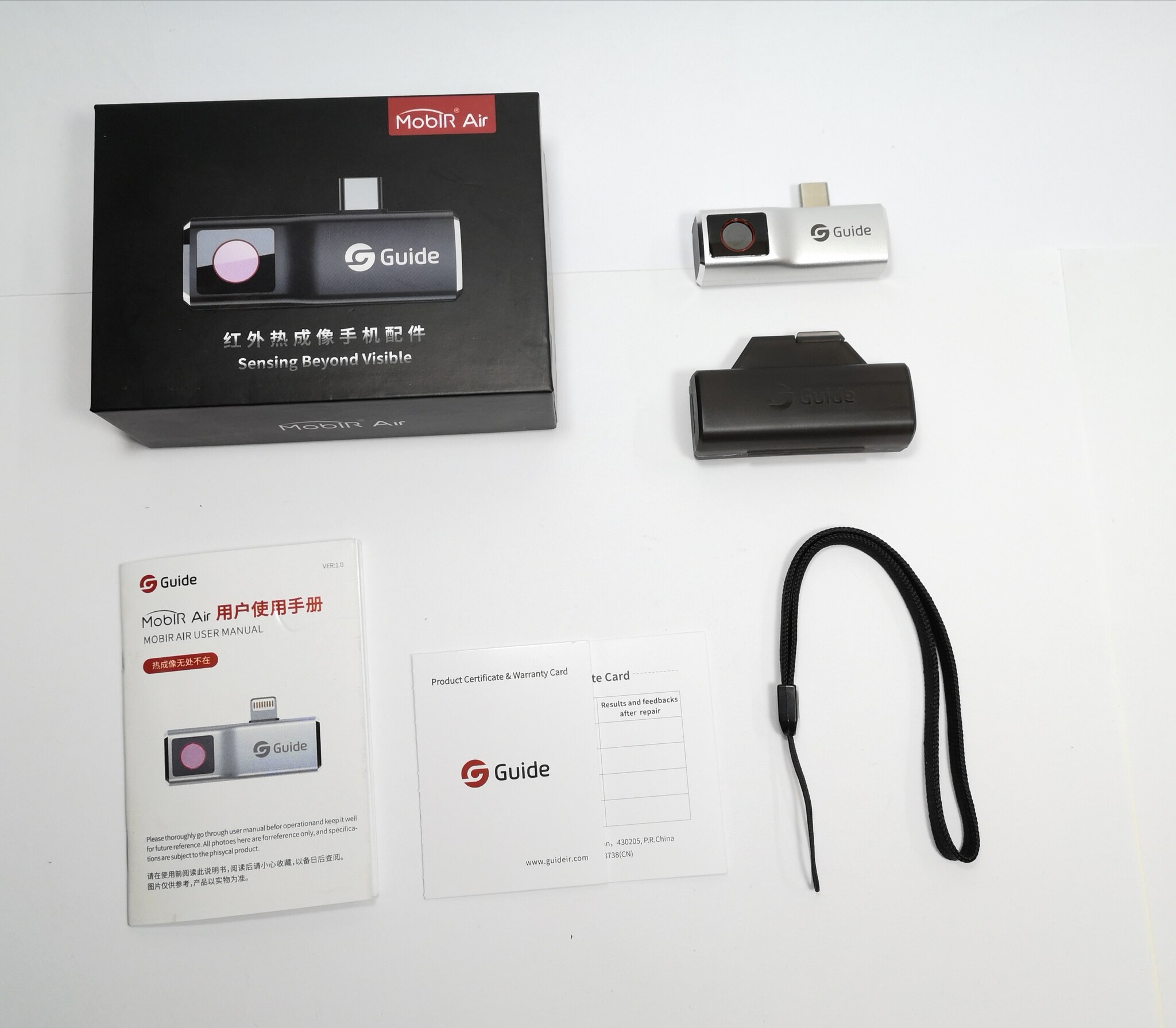

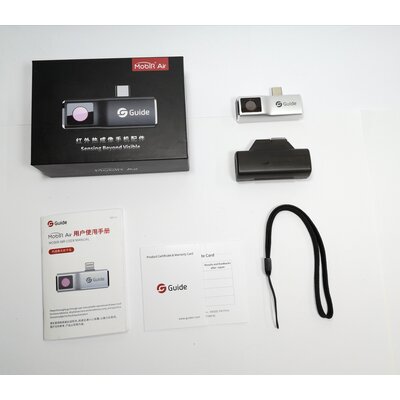

Standard A device, Carrying box, Wrist strap, User manual, Certificate of approval
