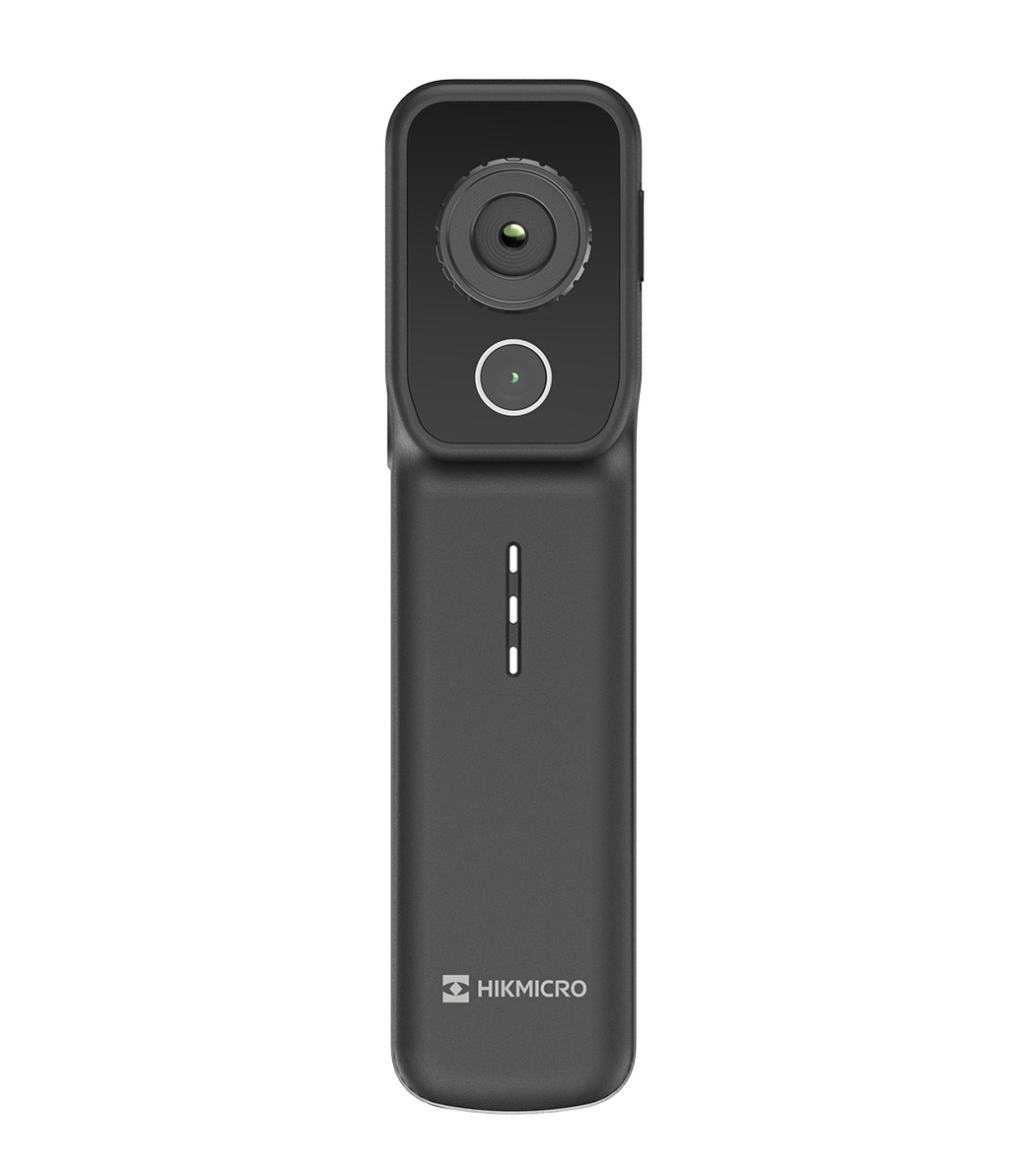

MiniX, Wireless Dual Camera, 256 x 192 pixels, 40mK, 25Hz, 37.2° × 50

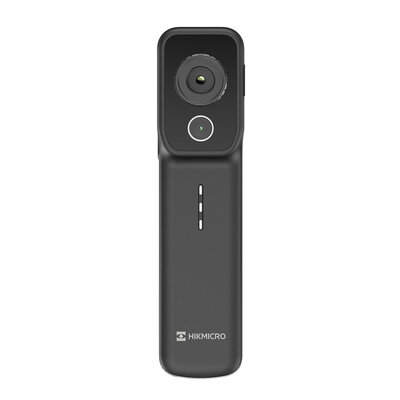

Hikmicro MiniX, 256 x 192 pixels, Wireless Dual Camera Thermal Imager

MiniX, 256 x 192 pixels, wireless thermal imaging camera for smartphone, with dual camera, razor-sharp focus from near to far. 256 x 192 pixels, 40mK, 25Hz, viewing angle 37.2° × 50.0°

Article number:: 1450963
Delivery time:: 1 - 3 Days
Availability:: In stock
Reviews:: | Add your review

€309,00

Excl. tax

MiniX, Wireless Dual Camera,

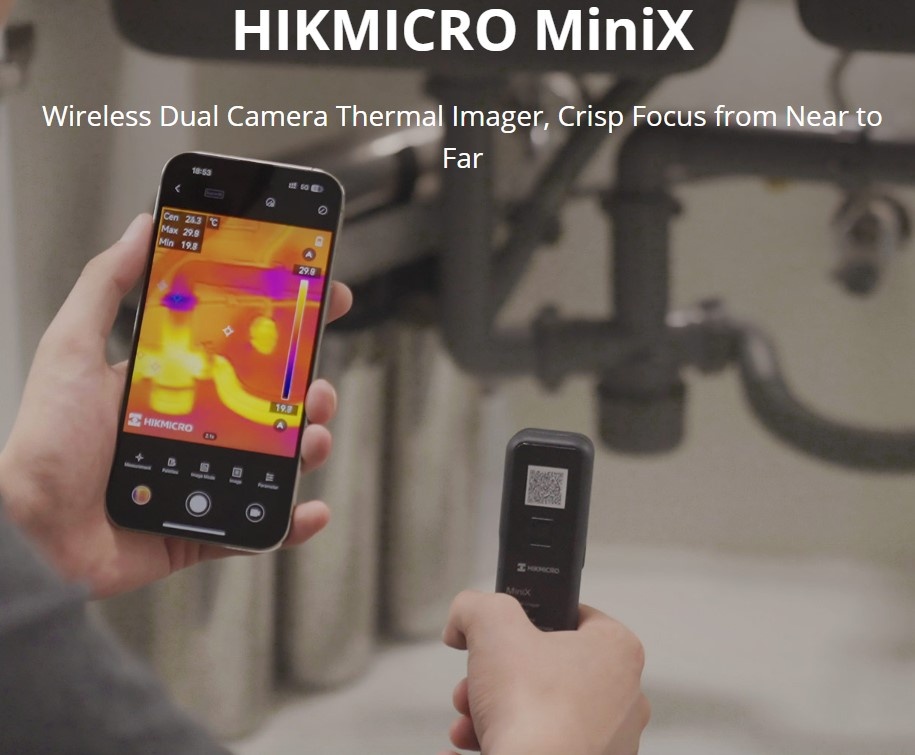

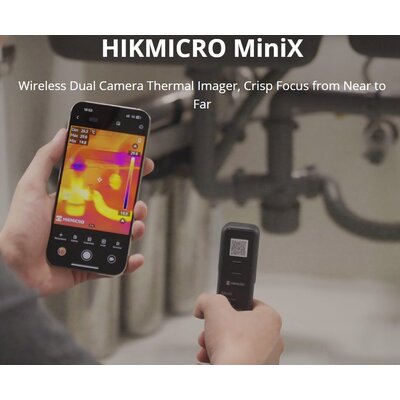

MiniX, Wireless Dual Camera Thermal Imager, Crisp Focus from Near to far

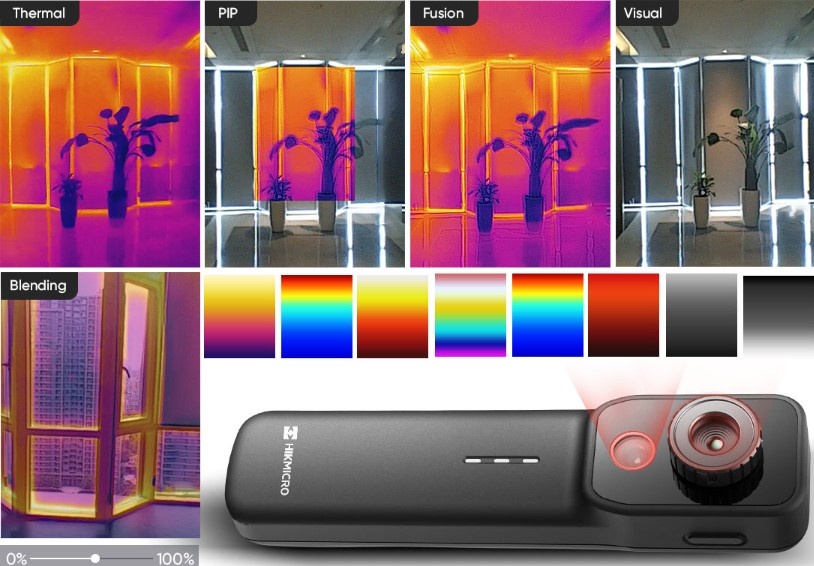

Dual Camera Thermal Imager

The high-resolution IR and visual cameras uncover hidden details with 5 image modes & 8 color palettes.

Enhanced Image Quality with SuperIR

HIKIMICRO MiniX features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

Adjustable Focal Lens

Crisp focus from near to far with a 3.5mm adjustable focal lens for precise details in PCB repair, inspections, and tracking.

Easy and Stable Wireless Connection

MiniX thermal camera simply scan a QR code for a quick wireless connection and enjoy stable image transmission.

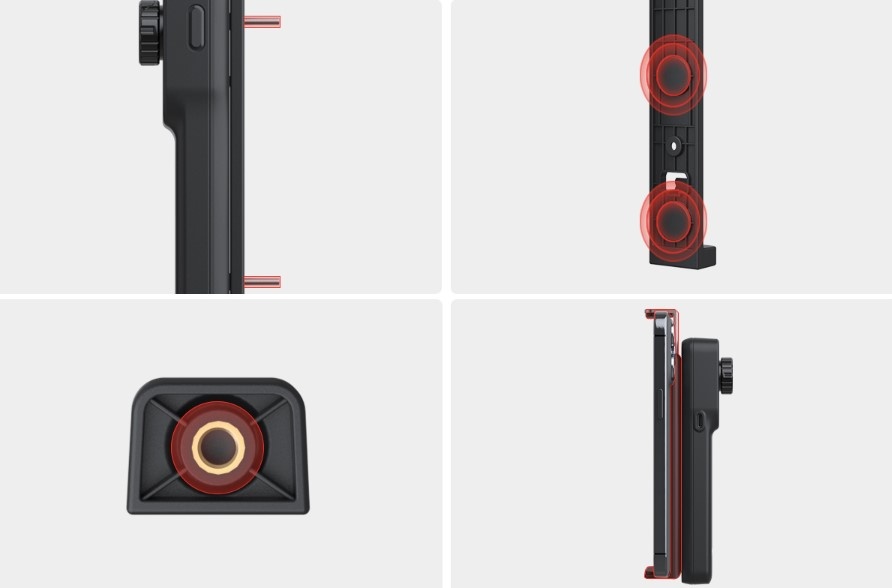

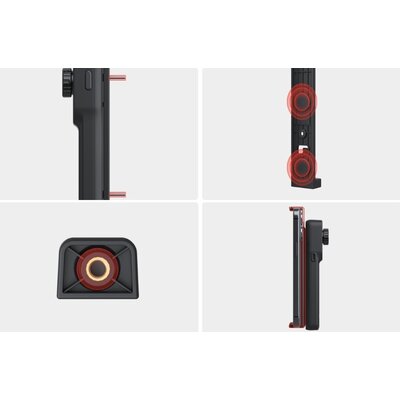

Compact, Ergonomic, Versatile Mounting

The HIKMICRO MiniX features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task.

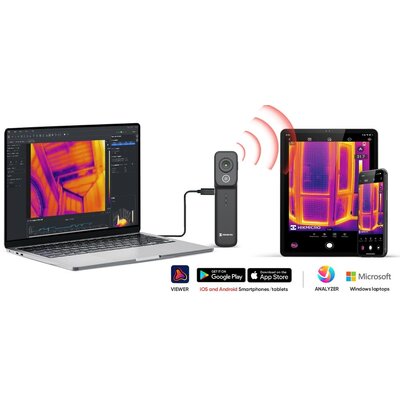

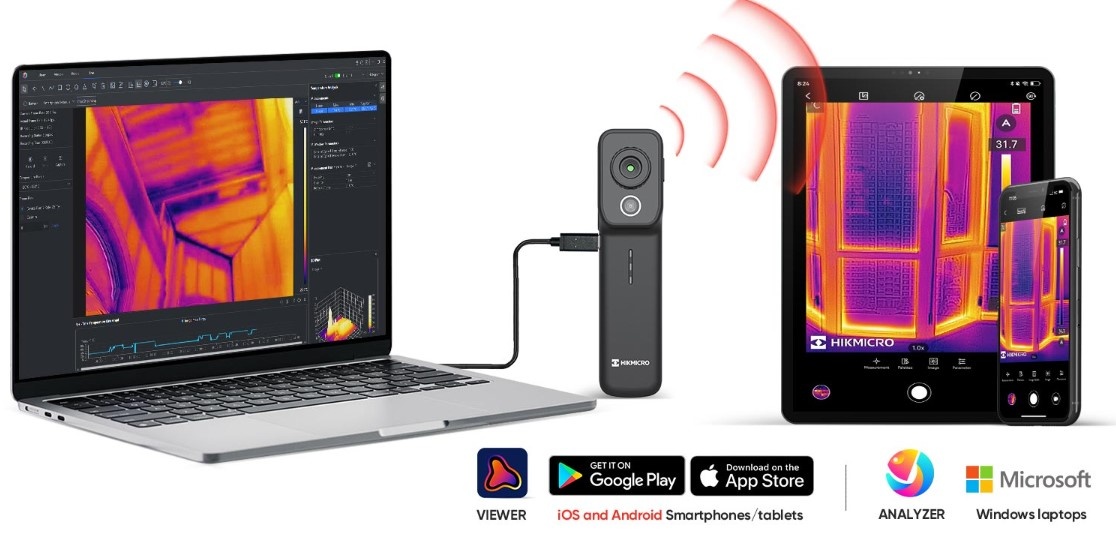

HIKMICRO ANALYZER

HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.

IR Resolution 256 × 192 (49, 152 pixels)

NETD < 40 mK (@ 25 °C, F#=1.0)

Image Frequency 25 Hz

Detector Pitch 12 μm

Spectral Range 7.5 to 14 μm

Focal Length 3.6 mm

F-number F1.0

Field of View (FOV) 37.2° × 50.0°

Spatial Resolution (IFOV) 3.33 mrad

Focus Mode Manual Focus

SuperIR Yes, on captured images and live view

Min. Focus Distance 0.05 m (0.164 ft)

Image Display

Visual Camera 640× 480 (0.3 MP)

Image Modes Thermal/Visual/Fusion/PIP/Blending

Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis

Object Temperature Range -20°C to 550°C(-4°F to 1022°F )

Accuracy Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)

Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots, 3 rectangles and 1 line

Level and Span Mode Auto/Manual

Data Storage and Communication

Video File Format MP4 video (25 Hz), saved in HIKMICRO Viewer App

Image File Format Radiometric JPEG, saved in HIKMICRO Viewer App

Radiometric Infrared-Video Streaming (Compressed) Over UVC（5Hz）

General

Wi-Fi

USB Interface

Battery Type

Battery Operating Time

Battery Charging Time

Power Saving Mode

Protection Level

Drop Test Height

Working Temperature Range

Storage Temperature Range

Relative Humidity

Weight

Dimension

Power Supply

Battery Indicator

Installation Method

Software Compatibility

Device Compatibility

802.11 b/g/n (2.4 GHz and 5 GHz)

USB Type-C

Rechargeable Li-ion battery

Approx. 4 hours

Supports fast charging. Charge to 50% capacity in 30 minutes，85% in 1 hour，and 100% in 2 hours.

Auto Power-off

IP54

1 m (3.28 ft)

-10°C to 50°C (-4°F to 122°F)

-20°C to 70°C (-4°F to 158°F)

< 95% non-condensing

Approx. 158 g (0.35 lb)

155.45 × 38.89 × 32.15 mm (6.12 × 1.53 × 1.27 in)

USB-C (5V/2A)

Yes, indicating battery level and charging status

Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting

HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows

iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices
