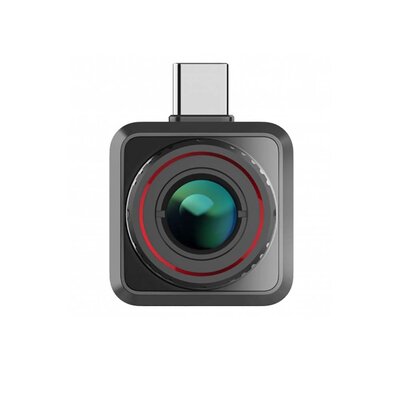

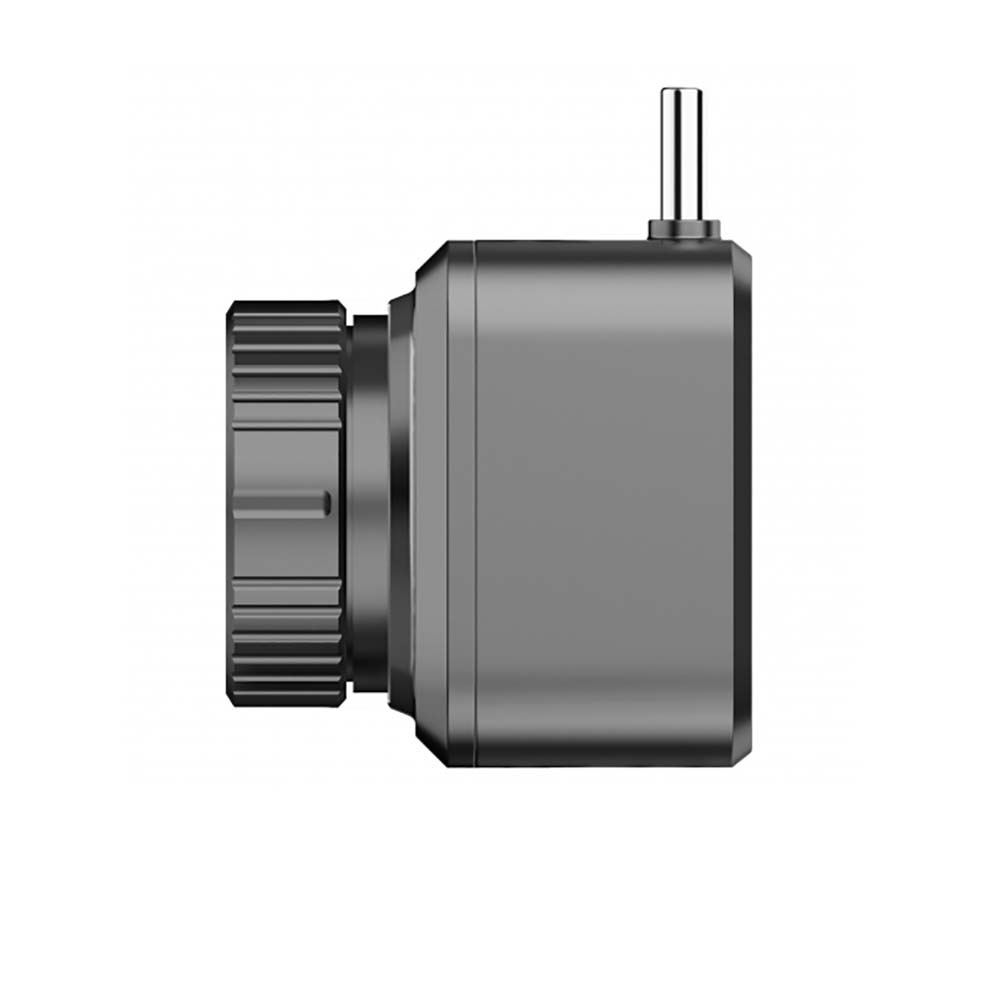

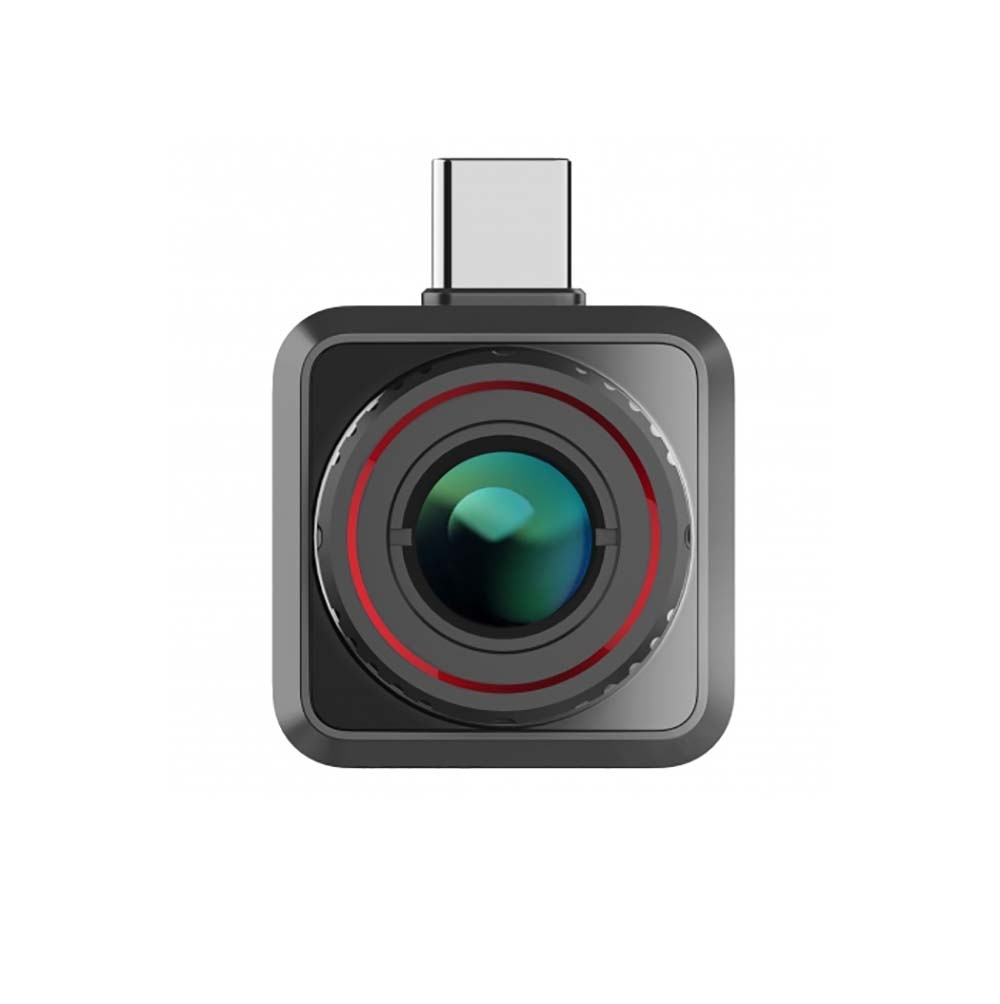

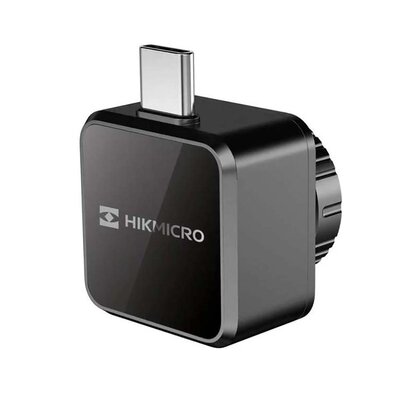

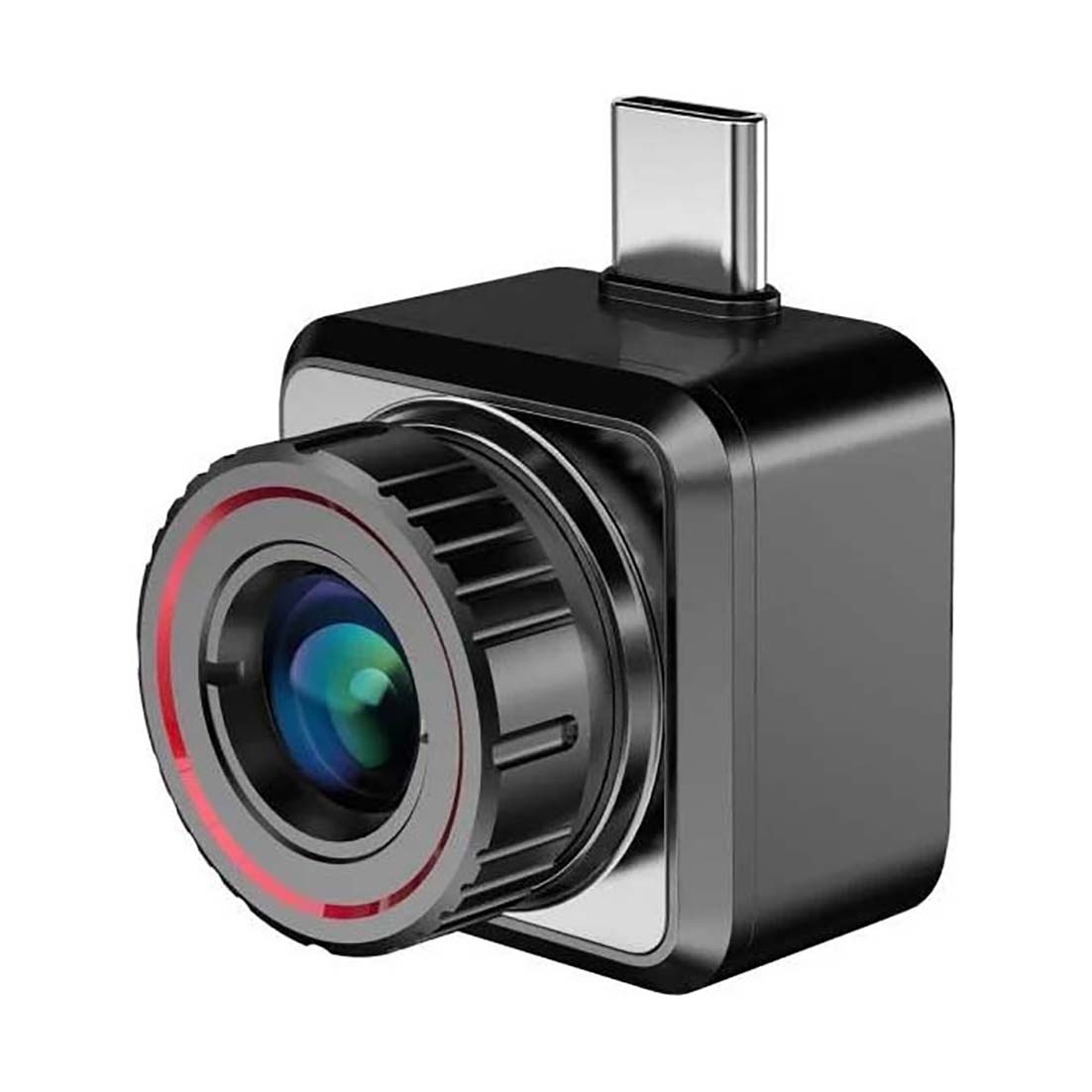

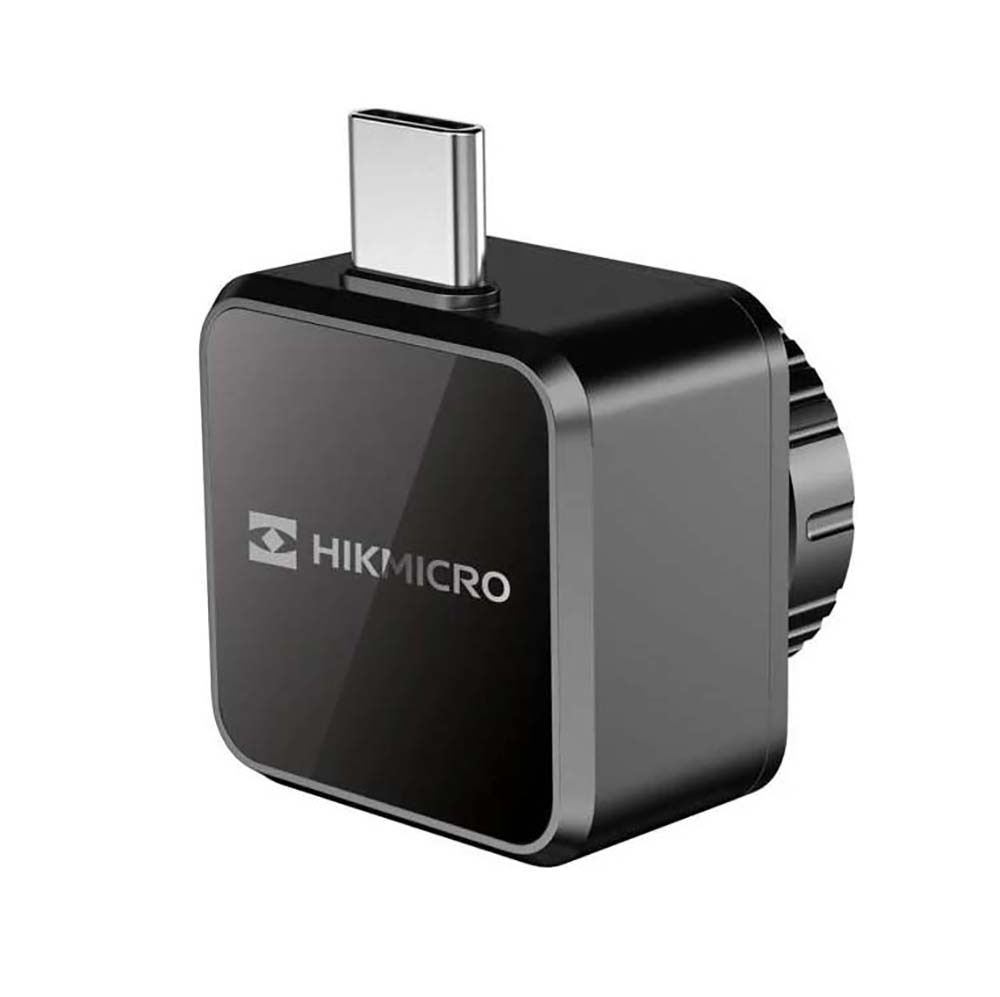

EXPLORER is perfect to take with you when you go outdoors. Its 256x192, 12µm thermal camera, 9.7mm lens and an 18.1°x13.6° / 31.8mx23.8m @100m wide FOV make it a great choice for users to find and identify hidden targets in complex environments, such as birdwatching or nature observation during day or night camping trips.
The thermal imaging camera for the HIKMICRO E20 Plus phone offers the user:
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response waveband | 8 μm to 14 μm |
| NETD | Less than 50 mK (@25°C,F#=1.0) |
| Lens (focal length) | 9.7 mm |
| Detection Range | 970 m |
| Field of View(H × V), Degrees / m @100m | 18.1°*13.6°/ 31.8m*23.8m |
| Aperture | F1.0 |
| Magnification | 1×-2x (Digital zoom 2x) |
| Image Display | |
| Contrast Adjustment | Adjustable contrast from 0 to 100 by slider control |
| Brightness Adjustment | Adjustable contrast from 0 to 100 by slider control |
| Image Mode | Birdwatching/Red Hot/ White Hot/Black Hot/Rainbow/Ironbow |
| General | |
| Power Consumption | 360 mW |
| Protection level | IP40 |
| Weight | 26g |
| Dimension | 26.6mm*26.6mm*27.2mm |
| Working Temperature | From -10 °C to 50 °C |
| Power Supply | USB Type-C interface |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Digital Magnetic Compass | YES |
| PIP | Yes |
| Hot Track | Yes |
| EAN | 6974004642402 |
