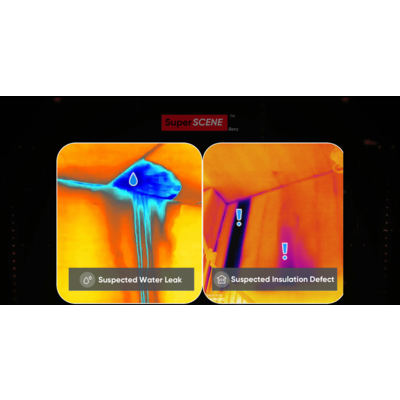

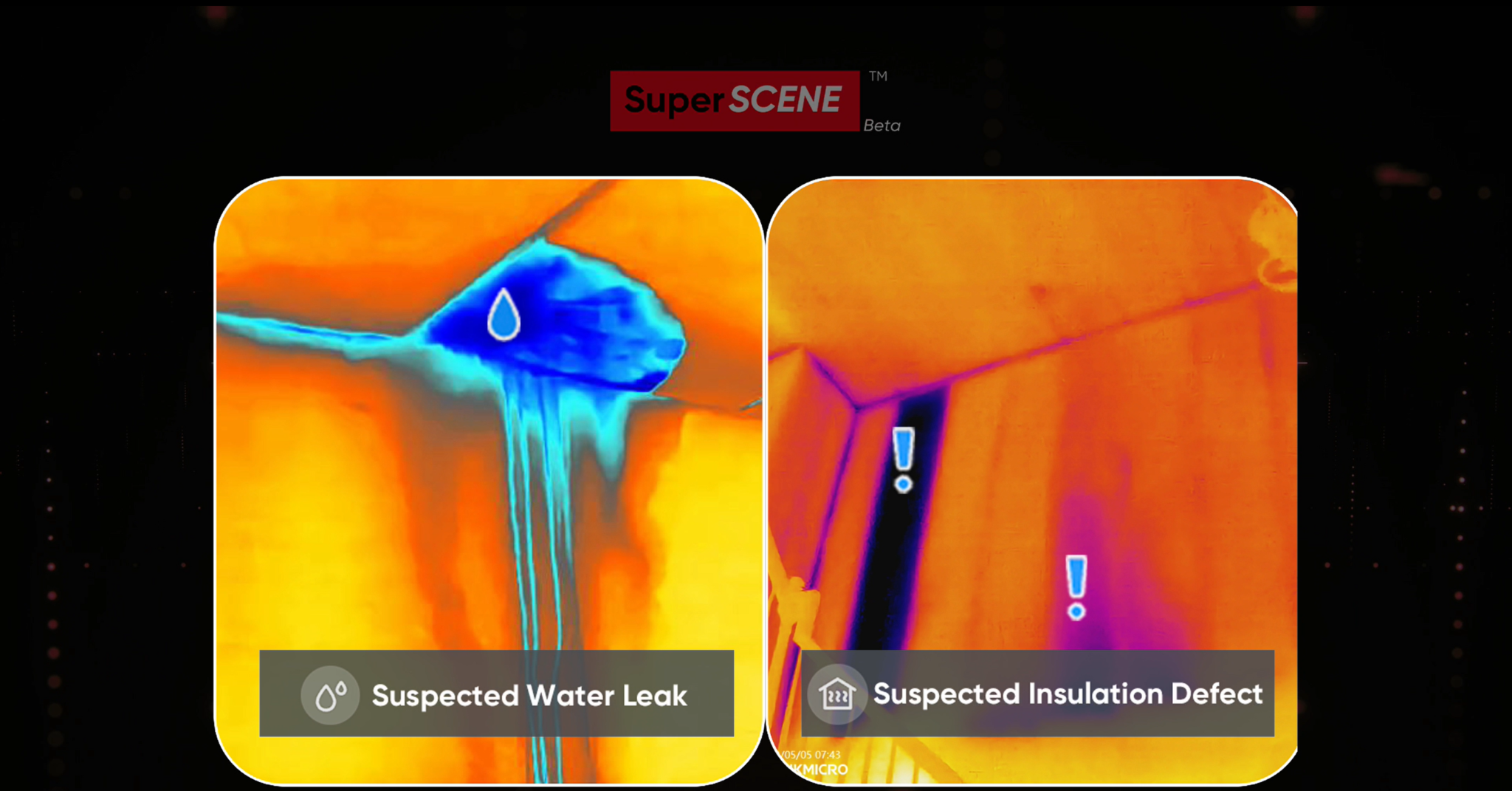

The Super IR resolution gives the ECO a perfectly nice image, which should be compared to a resolution of 240 x 240 thermal pixels
| Key Feature |
| ● Thermal resolution: 96 × 96 (9,216 pixels) |
| ● SuperIR Resolution: 240 × 240 (57,600 pixels) |
| ● NETD: < 50mK (@ 25°C, F# = 1.0) |
| ● Measurement presets: center spot, hot spot, cold spot, off |
| ● 25 Hz image frequency |
| ● Laser pointer |
| ● Built-in 4 GB flash memory: 30,000 pictures |
| ● Up to 8 hours continuous running |
| ● Thermal/Visual/Fusion |
MODEL |
ECO-V |
ECO |
| IR Resolution | 96 × 96 (9,216 pixels) | 96 × 96 (9,216 pixels) |
| SuperIR | 240 × 240 (57,600 pixels) | 240 × 240 (57,600 pixels) |
| Distance to Spot Ratio (D:S) | 112:01:00 | 112:01:00 |
| Image Frequency | 25 Hz | 25 Hz |
| NETD | < 50 mK 25°C | < 50 mK 25°C |
| Detector Pitch | 12 μm | 12 μm |
| Focal Length | 1.35 mm | 1.35 mm |
| Spectral Range | 7.5 to 14 μm | 7.5 to 14 μm |
| F-number | F1.0 | F1.0 |
| Field of View (FOV) | 50° × 50° | 50° × 50° |
| Spatial Resolution (IFOV) | 8.89 mrad | 8.89 mrad |
| Min. Focus Distance | 0.1 m (0.33 ft) | 0.1 m (0.33 ft) |
| Focus Mode | Focus Free | Focus Free |
| Image Display | ||
| Display | 240 × 320 Resolution, 2.4”LCD Screen | 240 × 320 Resolution, 2.4”LCD Screen |
| Image Modes | Thermal/Visual/Fusion | Thermal |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot | White Hot, Black Hot, Rainbow, Ironbow, Red Hot |
| Color Alarm | Above alarm | Above alarm |
| Visual Camera | 640 × 480 | |
| Measurement and Analysis | ||
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max (± 2°C/ ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C |
Max (± 2°C/ ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto | Auto |
| General | ||
| USB Interface | USB Type-C | USB Type-C |
| Laser | Yes, Class II | Yes, Class II |
| Battery Type | Rechargeable Li-ion battery | Rechargeable Li-ion battery |
| Battery Charging Time | Approx. 3 hours fully charged(Adapter Output: 5 V 2 A) | Approx. 3 hours fully charged(Adapter Output: 5 V 2 A) |
| Battery Operating Time | Approx. 8 hours | Approx. 8 hours |
| Protection Level | IP54 | IP54 |
| Drop Test Height | 2 m (6.56 ft) | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | < 95% non-condensing | < 95% non-condensing |
| Weight | Approx. 335 g (0.74 lb) | Approx. 335 g (0.74 lb) |
| Dimension | 196 × 117 × 59 mm (7.7” × 4.6” × 2.3”) | 196 × 117 × 59 mm (7.7” × 4.6” × 2.3”) |
| Tripod Mounting | UNC ¼”-20 | UNC ¼”-20 |
| EAN code | 6974004642921 | 6974004642914 |
