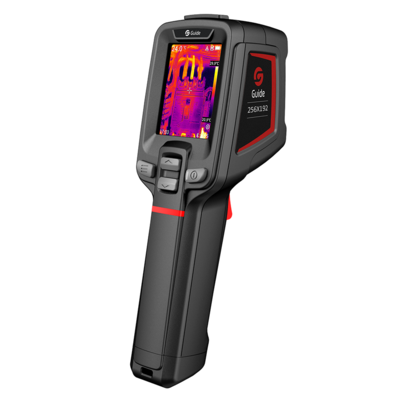

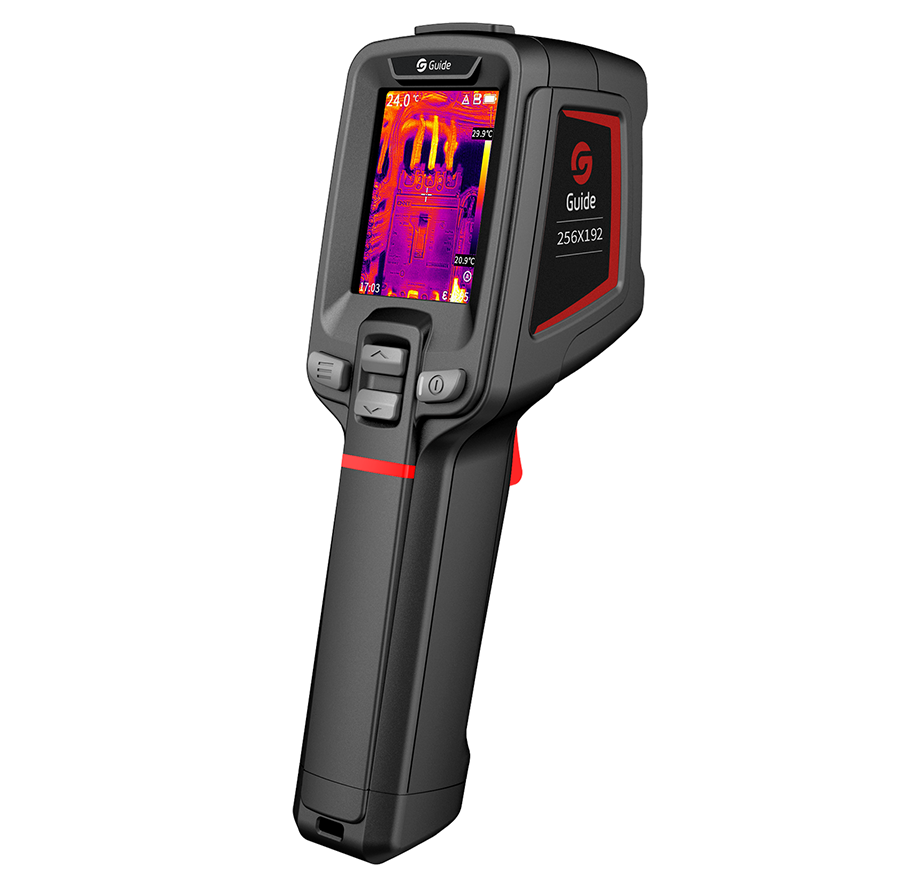

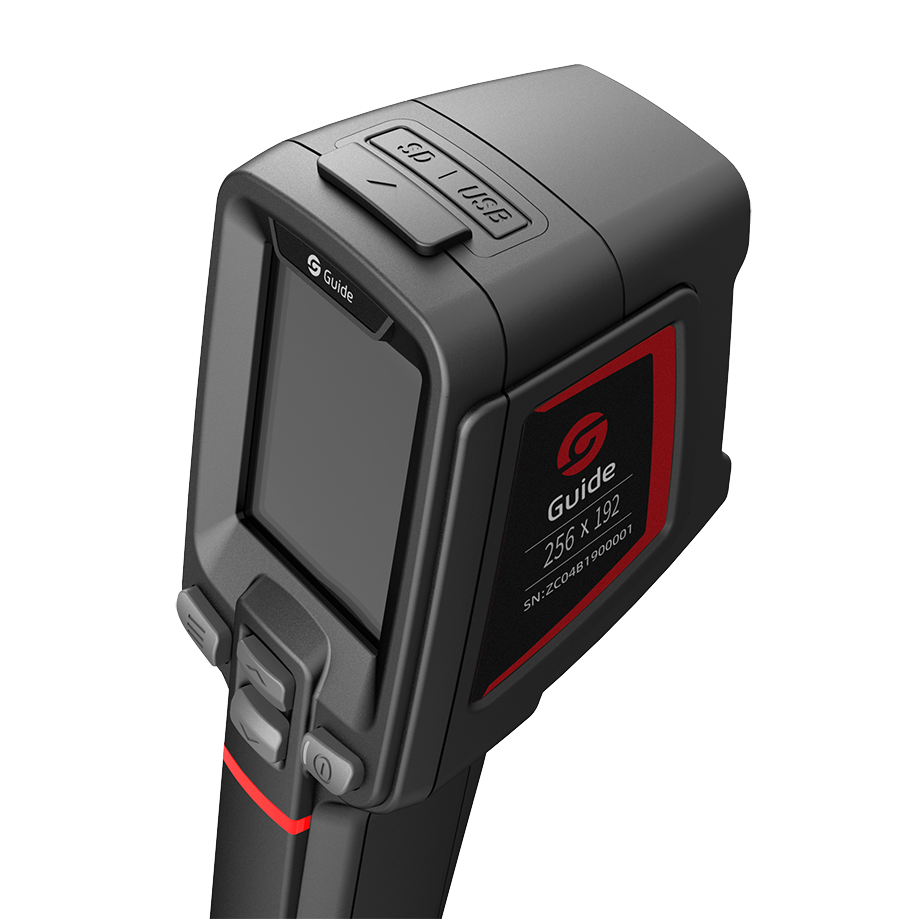

Guide E2+ with 256 x 192 Thermal Pixels and WiFi
Thermal camera as a tool
EasIR Series tool-like thermal camera provides two configuration options of 120x90 and 256x192 IR detectors. It adopts the new real-time IR-Perfclear technology to enhance the details and reduce noise of the image and present a clearer image in real time. Equipped with a series of professional functions such as 2MP visible light camera, video streaming and recording, WIFI, and OTA upgrade, etc., EasIR Series brings a clearer, more powerful and smoother work experience for users.
The New SharpIR composite image enhancement technology
•Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.

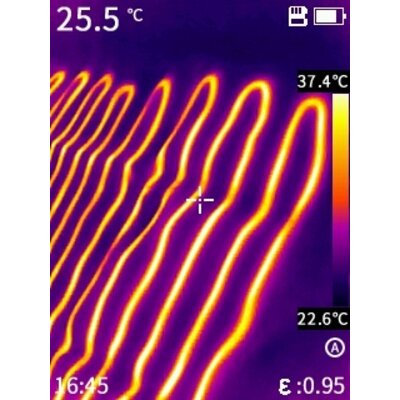

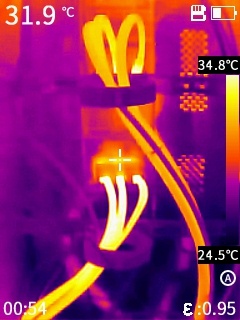

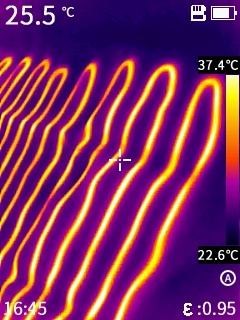

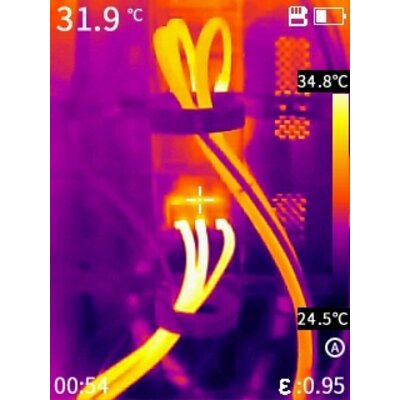

All palettes can display the temperature
•IR/Visible Light/ MIF/ PIP Four Image Modes
•All Can Check The Temperatures Data Intuitive Of The Target
•Including The Full Screen Max & Min & Center Spot Temperature
（3）Support PC Projection，To Get Large Screen Display
•Pictures In The Machine Can Be Transmitted To The Computer In Real Time By Using The Type-C To USB Cables
Infrared & visible light enriches the image display

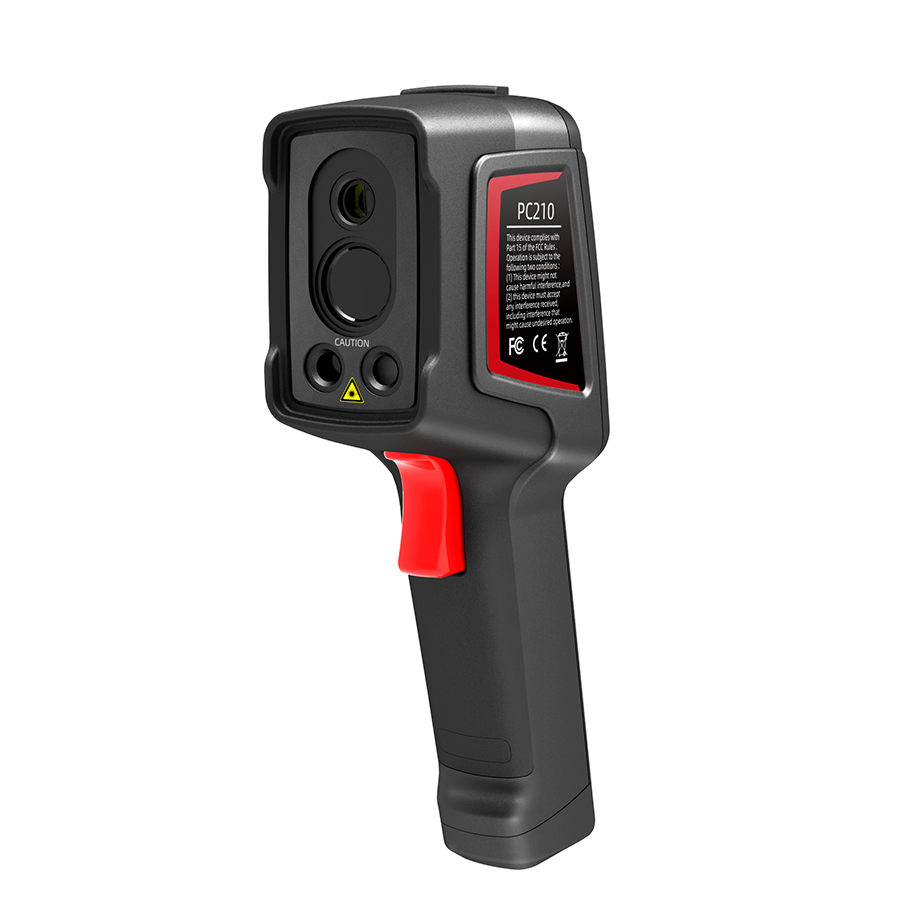

Equipped with a thermal imaging sensor and visible light camera, EasIR Series provides 4 image modes and 6 color palettes, helping users to observe and analyze the heat distribution of targets more intuitively.
Convenient Sharing Via Mobile APP Connection
By connecting the Wi-Fi, users can remotely access to phone album and share conveniently via the mobile APP. Additionally, EasIR Series can be controlled in real-time via the mobile APP for taking photos and recording videos. Note: *E1 does not support this function.
•Adopts 256x192 infrared module with Excellent imaging quality
•56°×48° FOV
•16H Operating time, 2.5H fast charge, easy to cope with two days of work
•Turn on in 1 second And Use, full-frame temperature measurement
•Rugged and Durable, Resistant to 2 meters drop, IP54 Protection Rating
•4 Color Palettes, And all palettes can display the temperature
•Wide temperature measurement range, -20°C~550°C, Automatic Switch

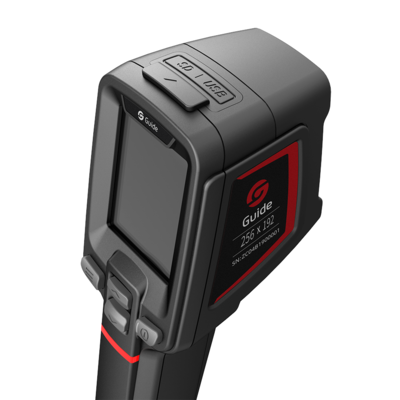

•Type C interface, Easy to transfer data And support PC screen projection
Specifications
Range -20 to 550 °C
Accuracy ±2 °C or ±2% (whichever is greater)
Focus distance Min. 30 cm
Frame rate 25 Hz
Response time 40 ms
Spot metering Centre, 3 areas (max/min), automatic spot metering, alarm
IR resolution 256x 192 (49152 pixels)
NETD 45 mK
Detector type VOX Focal plane array (FPA)
Screen 2.4 inch (320 × 240 pixels)
Battery Up to 16 hours
Charging time Fast charging, 0-100% in 2.5 hours
Dimensions 194 × 62 × 76mm (HxWxD)
Net weight 0.375 kg
