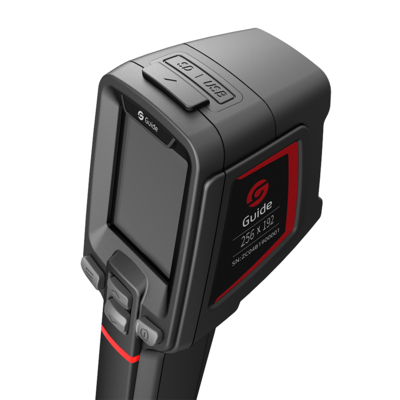

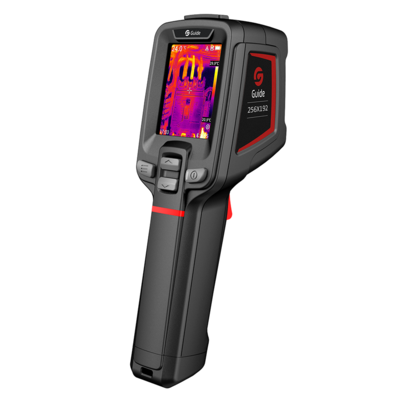

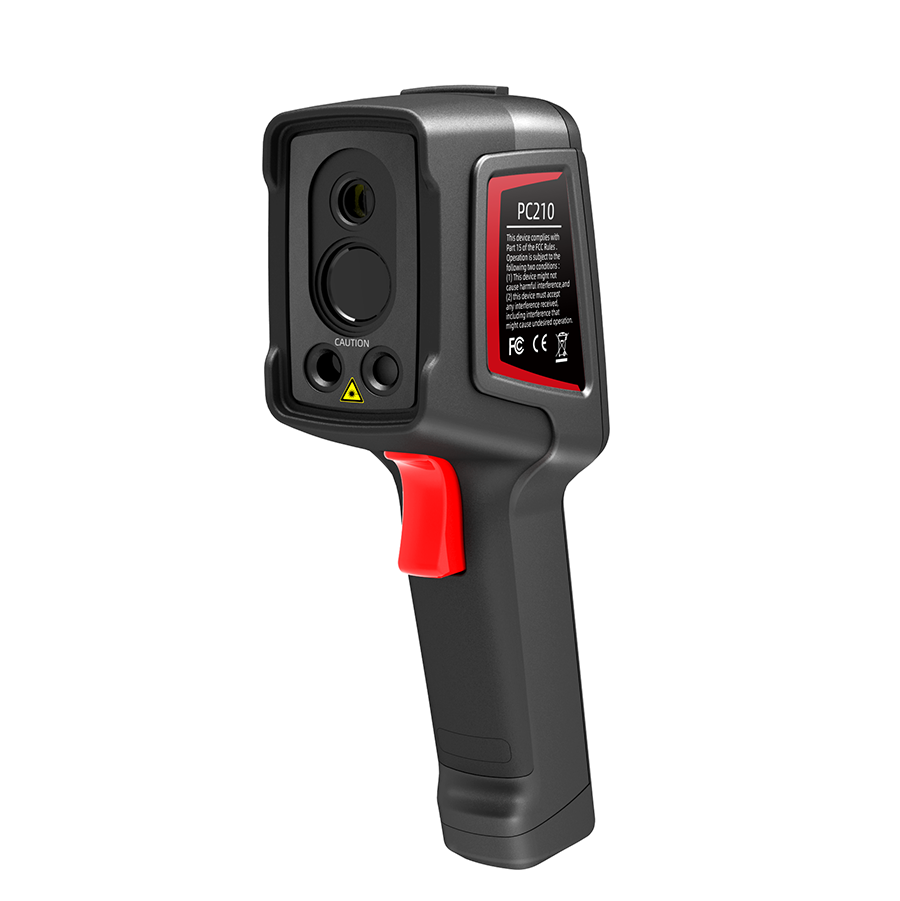

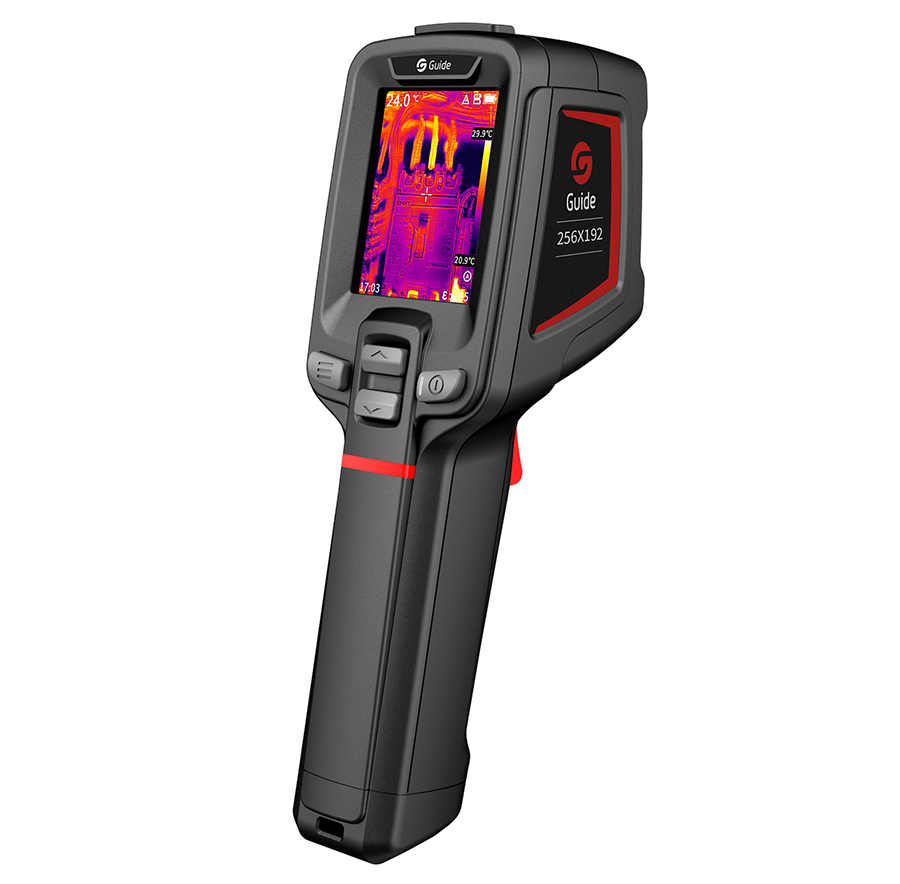

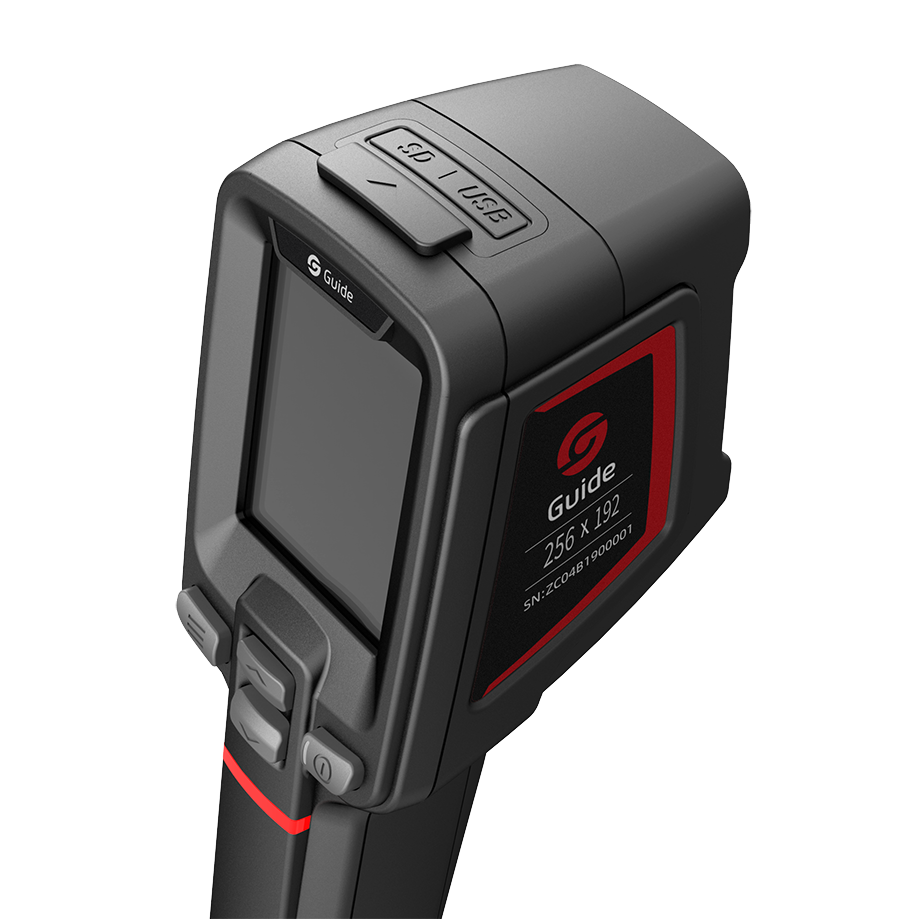

Guide E2+ with 256 x 192 Thermal Pixels, 25°×19°FOV, AutoFocus and WiFi
Thermal camera as a tool
With its single-button autofocus and longer measurement distance, the PC230 can be used among other scenes with 256x192 IR Detector and 2M visible light pixels.

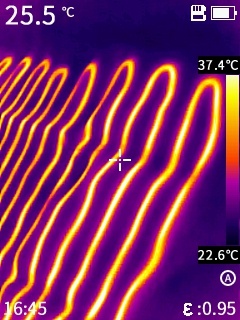

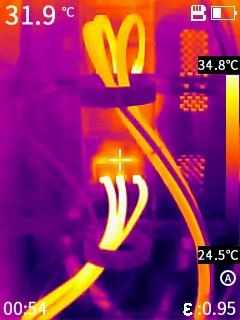

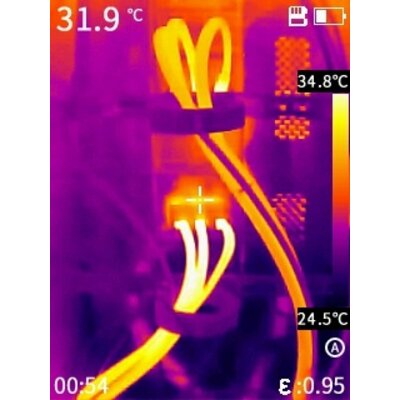

By using the new SharpIR composite image enhancement technology, you can obtain detailed infrared thermal images and dual light fusion images, allowing you to detect potential faults faster.
By using an IR resolution of 256x192 pixels combined with the visible camera, which overlays the contours of the normal image over the thermal image, this E2+ delivers razor-sharp thermal images.
In addition to the excellent sensor, this camera offers other important features: for example, 1 second start-up time, auto hot & cold spot tracking, alarm function, flashlight, and a laser pointer.
The New SharpIR composite image enhancement technology
•Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.
All palettes can display the temperature
•IR/Visible Light/ MIF/ PIP Four Image Modes
•All Can Check The Temperatures Data Intuitive Of The Target
•Including The Full Screen Max & Min & Center Spot Temperature
（3）Support PC Projection，To Get Large Screen Display
•Pictures In The Machine Can Be Transmitted To The Computer In Real Time By Using The Type-C To USB Cables
•Adopts 256x192 infrared module with Excellent imaging quality
•16H Operating time, 2.5H fast charge, easy to cope with two days of work
•Turn on in 1 second And Use, full-frame temperature measurement
•Rugged and Durable, Resistant to 2 meters drop, IP54 Protection Rating
•4 Color Palettes, And all palettes can display the temperature
•Wide temperature measurement range, -20°C~550°C, Automatic Switch
•Type C interface, Easy to transfer data And support PC screen projection
Specifications
Range -20 to 550 °C
Accuracy ±2 °C or ±2% (whichever is greater)
Focus distance Min. 10 cm
Frame rate 25 Hz
Response time 40 ms
Spot metering Centre, 3 areas (max/min), automatic spot metering, alarm
IR resolution 256x 192 (49152 pixels)
NETD 45 mK
Detector type VOX Focal plane array (FPA)
Screen 2.4 inch (320 × 240 pixels)
Battery Up to 16 hours
Charging time Fast charging, 0-100% in 2.5 hours
Dimensions 194 × 62 × 76mm (HxWxD)
Net weight 0.375 kg
