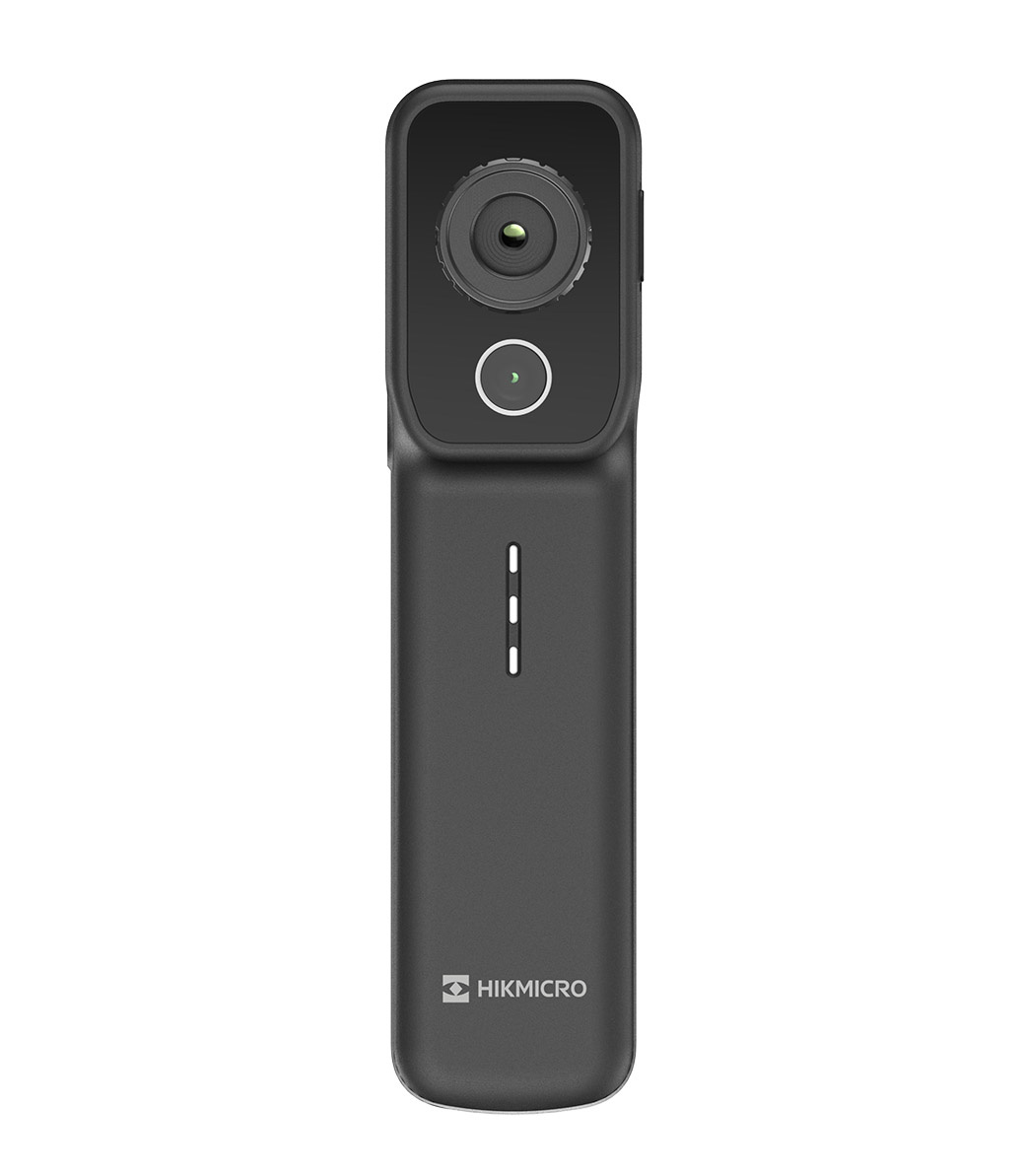

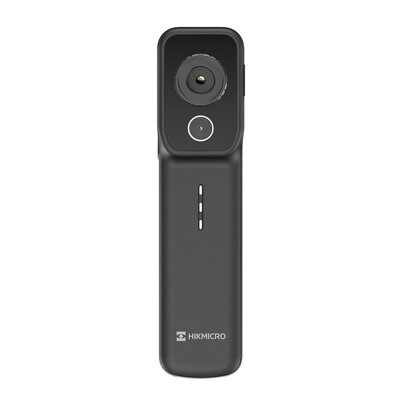

Hikmicro MiniX, Wireless Dual Camera Thermal Imager, Crisp Focus from Near to Far

MiniX, Wireless Dual Camera Thermal Imager, Crisp Focus from Near to Far, 256 x 192 pixels, 40mK, 25Hz, kijkhoek 37.2° × 50.0°
Verfügbarkeit:
Auf Lager
Bewertungen:
€309,00
exkl. MwSt.

MiniX

MiniX, Wireless Dual Camera Thermal Imager, Crisp Focus from Near to far

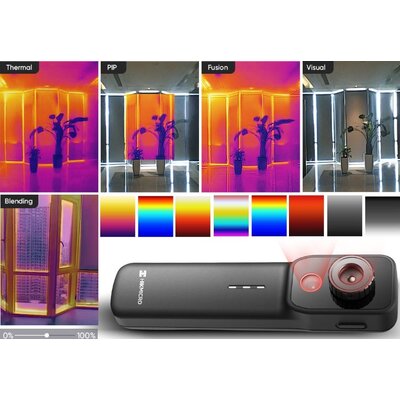

Dual Camera Thermal Imager

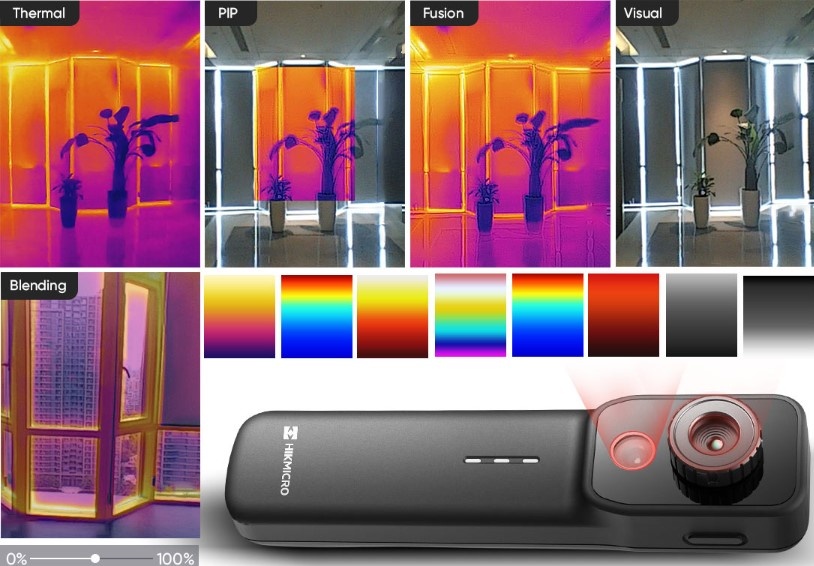

The high-resolution IR and visual cameras uncover hidden details with 5 image modes & 8 color palettes.

Enhanced Image Quality with SuperIR
HIKIMICRO MiniX features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.

Adjustable Focal Lens
Crisp focus from near to far with a 3.5mm adjustable focal lens for precise details in PCB repair, inspections, and tracking.
Easy and Stable Wireless Connection
MiniX thermal camera simply scan a QR code for a quick wireless connection and enjoy stable image transmission.

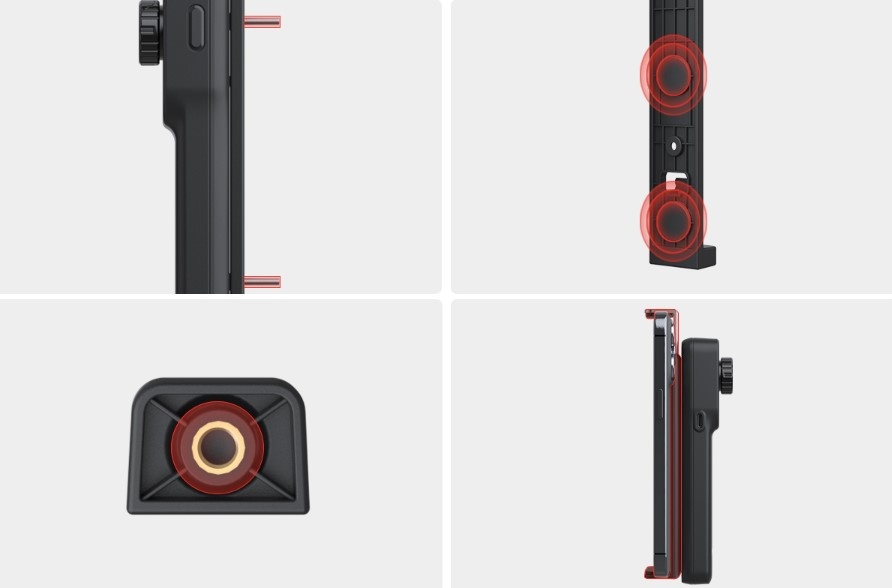

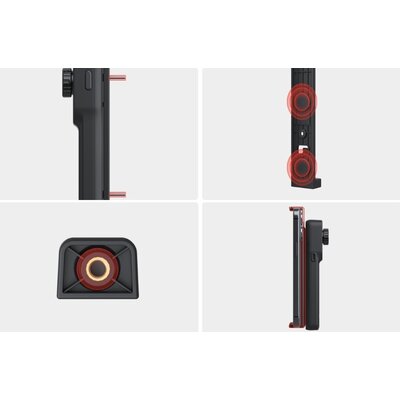

Compact, Ergonomic, Versatile Mounting
The HIKMICRO MiniX features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task.

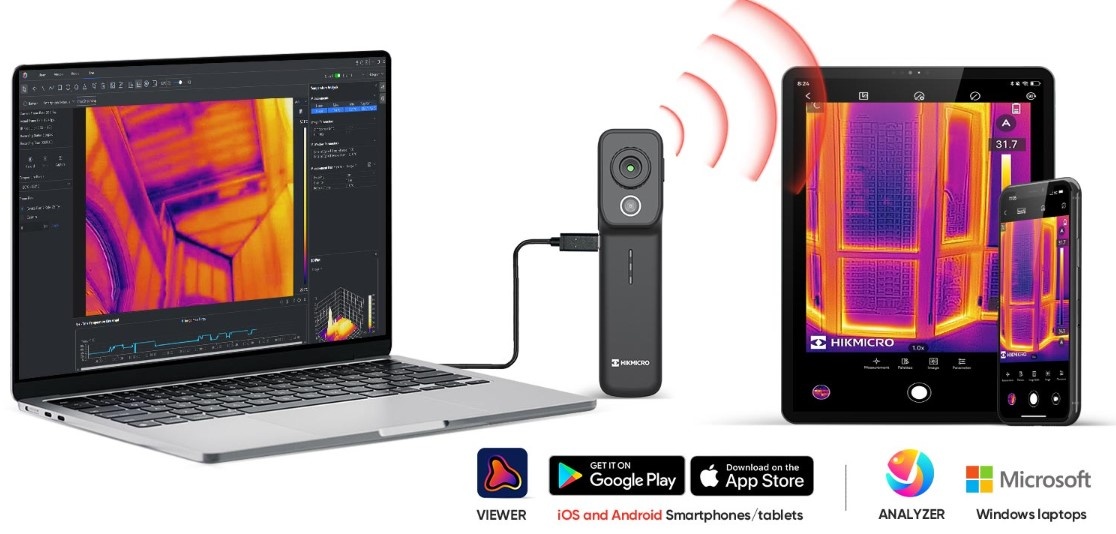

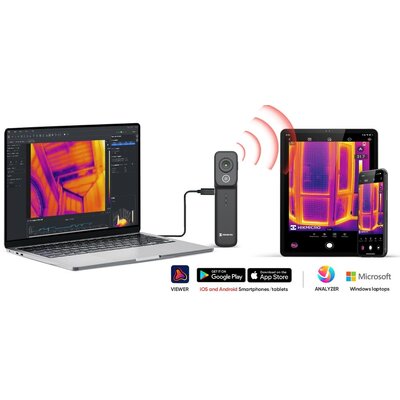

HIKMICRO ANALYZER
HIKMICRO Analyzer online preview feature is particularly valuable, allowing real-time access to thermal imaging data, which significantly enhances efficiency.




IR Resolution    256 × 192 (49, 152 pixels)
NETD    < 40 mK (@ 25 °C, F#=1.0)
Image Frequency    25 Hz
Detector Pitch    12 μm
Spectral Range      7.5 to 14 μm
Focal Length    3.6 mm
F-number    F1.0
Field of View (FOV)    37.2° × 50.0°
Spatial Resolution (IFOV)    3.33 mrad
Focus Mode    Manual Focus
SuperIR    Yes, on captured images and live view
Min. Focus Distance    0.05 m (0.164 ft)

Image Display

Visual Camera    640× 480 (0.3 MP)
Image Modes    Thermal/Visual/Fusion/PIP/Blending
Color Palettes    White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red

Measurement and Analysis

Object Temperature Range    -20°C to 550°C(-4°F to 1022°F )
Accuracy    Max (±2°C/3.6°F, ±2%), for the ambient temp. 15°C to 35°C (59°F to 95°F) and object temp. above 0°C (32°F)
Measurement Tools    Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots, 3 rectangles and 1 line
Level and Span Mode    Auto/Manual

Data Storage and Communication

Video File Format    MP4 video (25 Hz), saved in HIKMICRO Viewer App
Image File Format    Radiometric JPEG, saved in HIKMICRO Viewer App
Radiometric Infrared-Video Streaming (Compressed)   Over UVC(5Hz)

General

Wi-Fi
USB Interface
Battery Type
Battery Operating Time
Battery Charging Time
Power Saving Mode
Protection Level
Drop Test Height
Working Temperature Range
Storage Temperature Range
Relative Humidity
Weight
Dimension
Power Supply
Battery Indicator
Installation Method
Software Compatibility
Device Compatibility


802.11 b/g/n (2.4 GHz and 5 GHz)
USB Type-C
Rechargeable Li-ion battery
Approx. 4 hours
Supports fast charging. Charge to 50% capacity in 30 minutes,85% in 1 hour,and 100% in 2 hours.
Auto Power-off
IP54
1 m (3.28 ft)
-10°C to 50°C (-4°F to 122°F)
-20°C to 70°C (-4°F to 158°F)
< 95% non-condensing
Approx. 158 g (0.35 lb)
155.45 × 38.89 × 32.15 mm (6.12 × 1.53 × 1.27 in)
USB-C (5V/2A)
Yes, indicating battery level and charging status
Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting
HIKMICRO Viewer app for iOS and Android, HIKMICRO Analyzer software for Windows
iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices
